Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | SUNCHIP |
| Model Number : | AD-C58 |
| Certification : | ISO 9001 , ISO 14001, ISO 27001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1,000,000pcs per month |
| Delivery Time : | 1~3 days if have stock, 30days if no stock |
Product OverView:

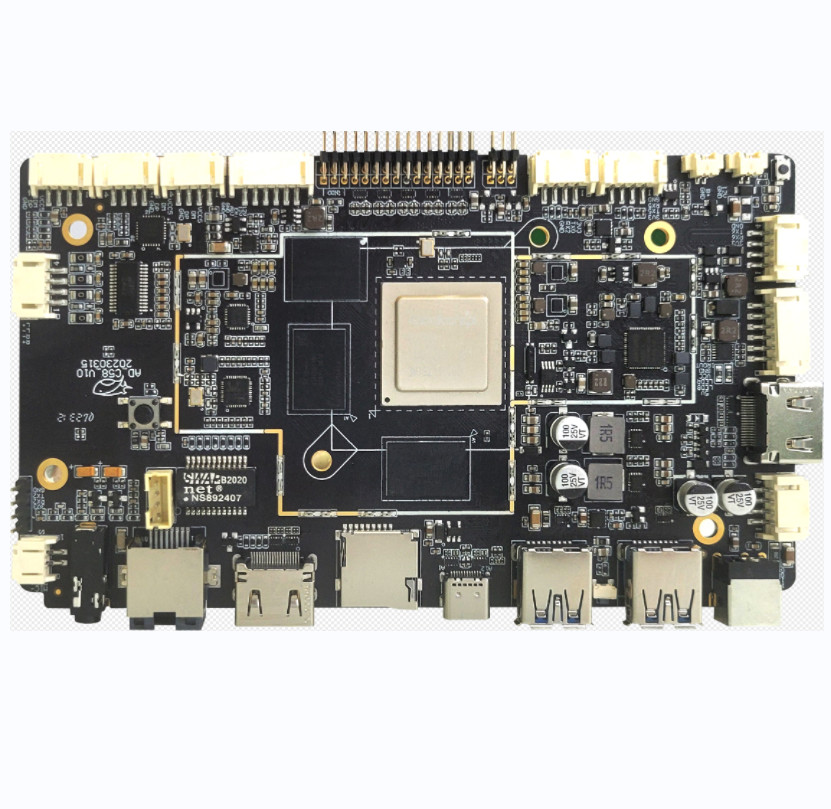

-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 | |
Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | |
GPU | ARM Mali-G610 MC4 | |
OpenGL ES 1.1/2.0/3.1/3.2 | ||
Vulkan 1.1,1.2 | ||
OpenCL 1.1,1.2,2.0 | ||
Embedded high-performance 2D image acceleration module | ||
NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | |
Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x | |
Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) | |
Display interface | HDMI OUT(Up to 8K@60FPS) | |
HDMI IN(Up to 8K@60FPS) | ||
LVDS display interface | ||
EDP display interface | ||
MIPI display interface | ||
Screen voltage | Support 3.3V/5V/12V optional | |
Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | |
Network | With RJ45 interface, support 10/100/1000M Ethernet. | |
Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | ||
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function | |
Real Time Clock | Built-in real-time clock powered by battery | |
Interface device | Support MIPI interface camera, support 500W pixels | |
3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
2 USB HOST3.0 (standard interface) | ||
1 full-featured Type-C interface (OTG) | ||
3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
TF card, maximum support 128GB | ||
Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format | |
Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS | |
Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | |
Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | |
Main Feature::
1. Octa-Core, 8K output, 4K hardware decoding;
2. Main frequency up to 2.4GHz;
3. RK3588 performance is higher 3.3 times than RK3399
4. Android 12 OS;
5. Rich interfaces, including RS232,RS485, USB 3.0, HD -MI, DP, etc.
6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual Gigabit Ethernet ;
7. Build-in M.2 SSD Extended interface (SSD optional)
Sunchip has obtained National High-Tech Enterprise, SRDI (Specialized Refinement Differential Innovation), ISO9001, ISO 14001 ,ISO27001, Intellectual Property Management system, AAA credit rating qualification certification and perfect IT management system.
At present, the products include industry motherboards, metaverse
smart terminal, industrial box, cloud advertising information
release systems, etc.
With an excellent R&D team, Sunchip has mastered a complete set
of ultra-high-definition video decode & encode solutions and mass
production technologies, who can provide global customers with
one-stop services, such as product definition, software and
hardware design and development, manufacturing and after-sales
support.
The delivery methods include PCBA, integrate hardware & software ,
software customization, cloud system, complete machine, OEM/ODM,
etc. The simple and fast process brings mature and cost-effective
products to the industry.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
|
|
