Rockchip Android Motherboard​

Overview:

The intelligent industrial all-in-one board adopts the Rockchip RK3399 six-core chip solution and supports the Android 9.0 system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.

Characteristic:

• Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
• Support EDP interface display screen.
• Support MIPI interface display screen.
• Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
• Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
• Multi-channel USB interface, serial port, IO port output.
• Support 4K video playback and HDMI 2.0 high-definition output.
• Strong anti-electromagnetic interference and electromagnetic compatibility.

Product Specifications

• Hardware specifications

• CPU	Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
  GPU	ARM Mali-T860MP4 GPU
  Deposit	LPDDR4 4G
  Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (Default 16GB)
  Display interface	LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
  	EDP screen interface, support resolution 1920x1080
  Screen voltage	Support 3.3V/5V/12V optional
  Network	With RJ45 interface, support 10/100/1000 Ethernet
  	Support 4G PCIE interface
  	With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 4.2
  Image rotation	Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
  Real Time Clock	External real-time clock power supply battery

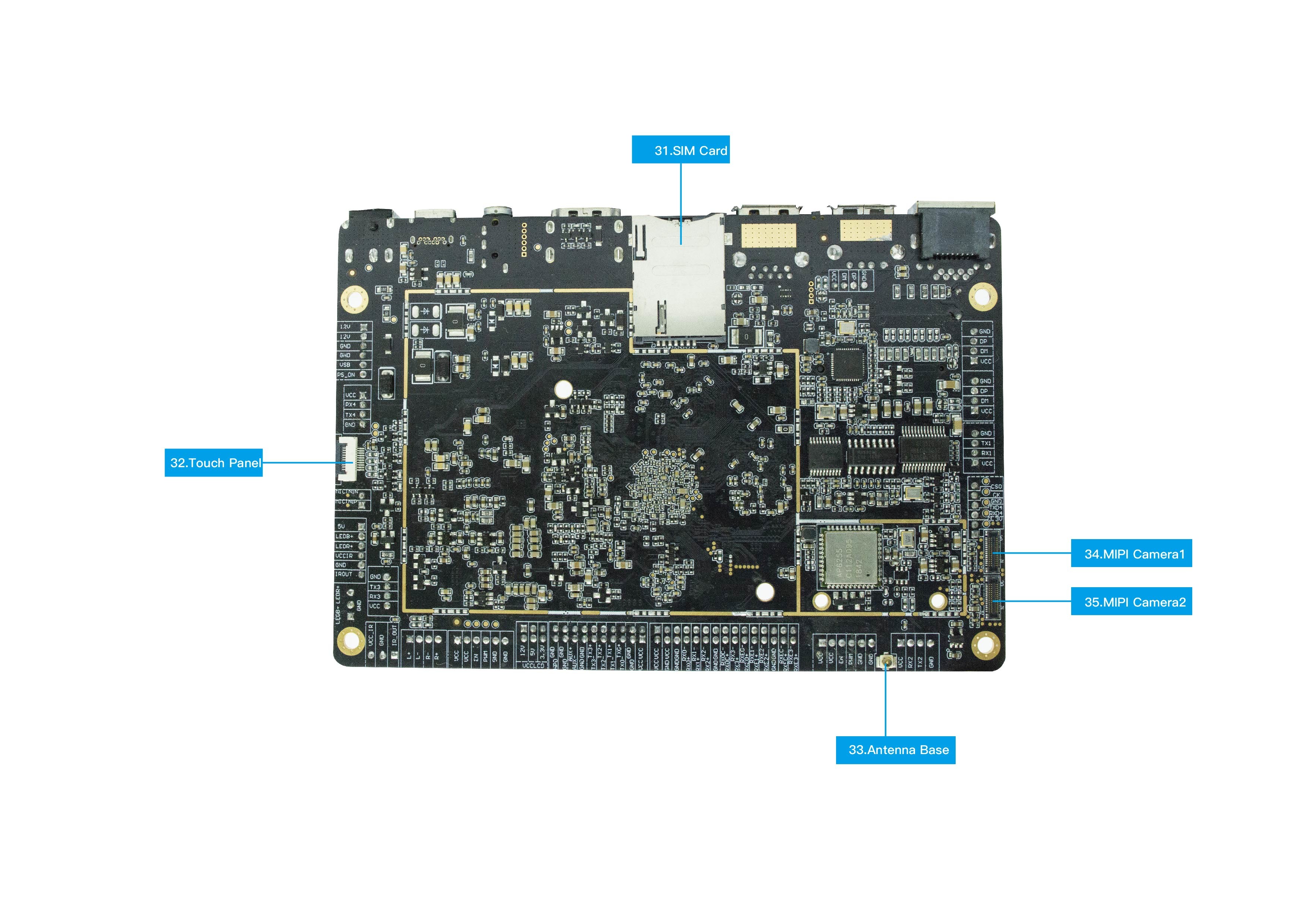

  Interface device	Support MIPI camera x2
  	USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0
  	3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)
  	TF card, maximum support 64GB
  	Class D amplifier: 5W*2 8 ohms, support microphone
  	HDMI 2.0 output
  Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
  Video	Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
  Picture	Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
  Power Adapter	Input:AC100-240V.50-60HZ, Output: DC12V/3A

• Basic software specifications

  Operating system	Android 7.0
  Basic software function	Web browsing, email, e-book, resource manager
  Sound mode	Clock, alarm clock, calculator, recording
  Voice support	Multinational voice
  Recording	Support MP3, WMA format recording
  Tool	Calendar
  	Alarm Clock
  	Calculator
  	Note
  	Weather + clock
  	Recording
  File processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
  E-book	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
  Schedule	Calendar
  Input	Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
  Internet	Browser -Chrome Lite
  	Email
  	Gmail
  System Management	APK installer
  	Original Android system, open root permissions, product customization development
  	Real-time remote monitoring, 7*24 hours unattended
  	Support OTA remote upgrade
  	System setting
  	Google Maps
  	Global time

Application Field

■ Commercial advertising display machine

■ POS machine

■ Digital photo frame advertising machine

■ Touch all-in-one machine

■ Self-service vending machine

Service:

1. PCBA design

2. Housing design

3. Software and hardware customization

4. Logo print on housing

5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function

6. Good quality products

7. full after-sales service with technology support

8.100% QC check before shipping
