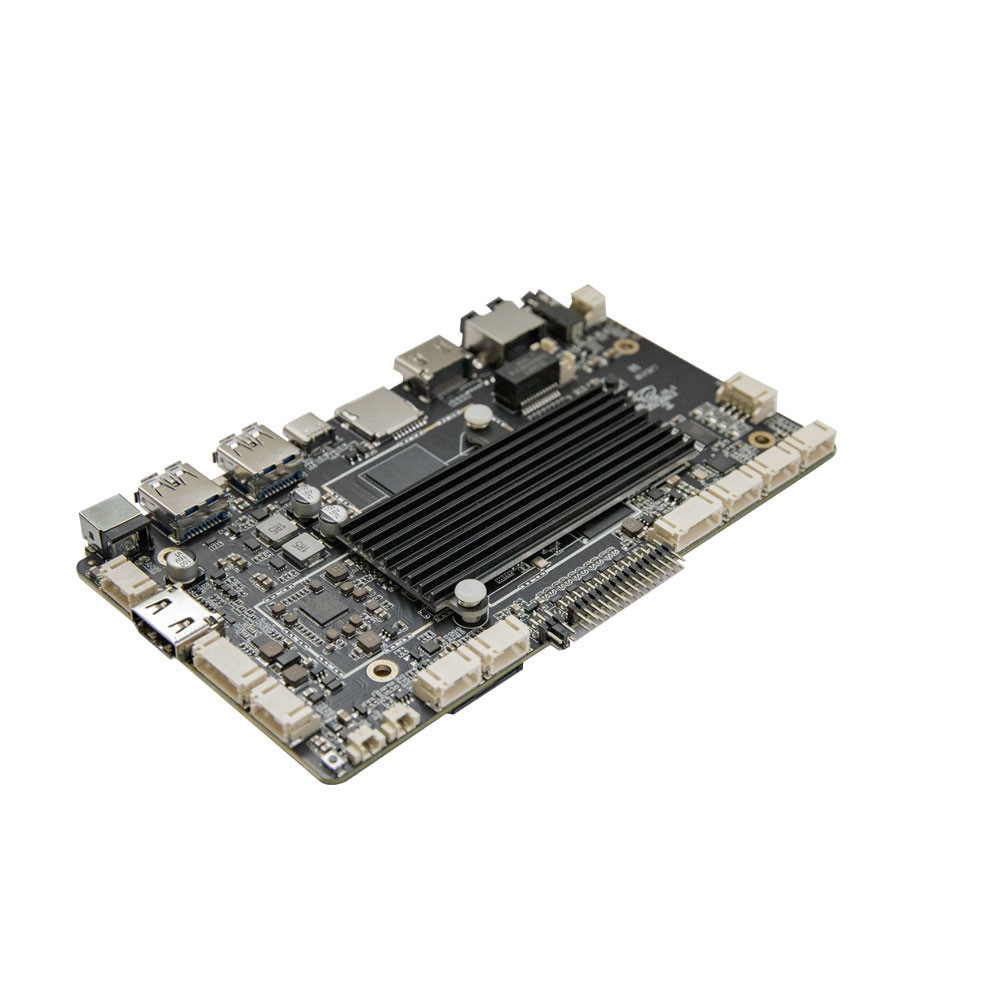

RK3288 PCBA LVDS Display Controller Android Embedded Motherboard For vending machine digital signage

Model NO.: AD-Z37

Overview:

Quad-Core High-Performance Board

Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.

RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.

High-performance Core Configuration

with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.

RK3288 All in one board:

Android board with LVDS/ EDP output

1. Rockchip RK3288 Quad Core Cortex-A17,up to 1.8GHz

2. Support 4K*2K 10bits VP9/H265/H264 video decoing,up60fps.

3. Apply to Kiosk, Financial mahcine, Advertising Machine,Vending machine etc.

The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.

Characteristic:

A. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).

B. Support EDP interface display screen.

C. Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.

D. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.

E. Multi-channel USB interface, serial port.

F. Support 4K video playback and HD 2.0 high-definition output.

G.Strong anti-electromagnetic interference and electromagnetic compatibility.

Product Specifications

• Hardware specifications

•
  Basic software specifications

Application Field

Restaurant Digital Menu Boards

Hotel Digital Signage:

Available Customization that from Sunchip:

Regarding software:

1. Booting logo/animation

2. Model number of the Android System

3. Build number of the Android System

4. Pre-install APK

5. Delete APK

6. Set defaulted time zone

7. Set defaulted language

8. Virtual Keyboard (the current defaulted is English Keyboard)

9. Other requirements etc.

Regarding hardware: ODM layout

……More customization is waiting for your checking.

SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.

We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.

Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.

Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.

We are looking forward to cooperating, developing and growing with you sincerely.

Our main products:

-Android embedded motherboard

-4K/8K player box of media or industrial

-Different kinds of AIO lcd digital signage display machine

Let me know if any interest, will be happy to show you more details by return. thanks!
