Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Sunchip |
| Model Number : | AD-Z37 |
| Certification : | ISO9001, ISO14001, ISO27001 |
| Price : | Negotiated |
| Delivery Time : | Samples sent out 1-7 days, MP lead time 15-30 days |
| Payment Terms : | 100% T/T for samples, Negoticated for MP |
| Supply Ability : | 10,000pcs/Month |

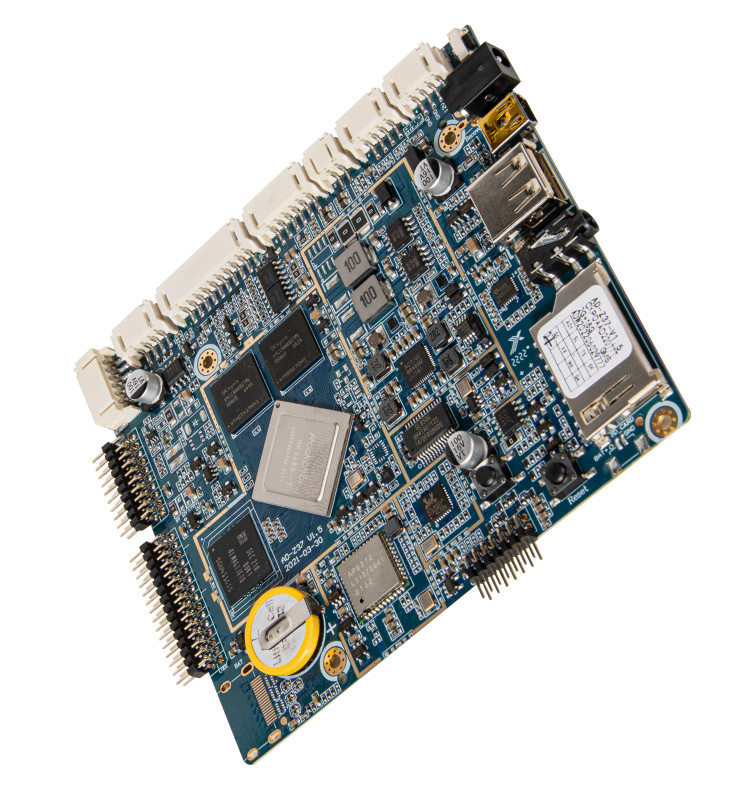

Quad-core RK3288 Android Decoding Driver All-in-One Board Specification(Model No.:AD-Z37 V1.5)
The RK3288 Board runs on Android 7-10 versions, providing a stable and reliable platform for your applications. This makes it ideal for use in industrial environments where reliability is critical. Additionally, this board features a 3.5mm audio jack, allowing you to add audio capabilities to your applications with ease.
The RK3288 Board also supports a range of display options, including LVDS, EDP, MIPI, and HD out. This makes it a versatile choice for a range of industrial applications, from digital signage to machine control systems. With Display PCB Board support, you can easily integrate this board into your existing systems, reducing development time and costs.
Finally, the RK3288 Board also features Bluetooth 5.2 support, providing fast and reliable connectivity for your applications. This makes it ideal for use in industrial automation and control systems, where wireless connectivity is essential.
In summary, the RK3288 Board is a powerful industrial circuit board that offers a range of advanced features and capabilities. With support for USB and MIPI cameras, Android 7-10 versions, 3.5mm audio jack, LVDS/EDP/MIPI/HD out display options, and Bluetooth 5.2, it is a versatile and reliable choice for a range of industrial applications.
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HD 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
| OS | Android 7-10 Version |
| Bluetooth | 5.2 |
| Power Supply | DC 12V/2A |
| 4G LTE | MINI PCIE, Optional |
| Card Reader | TF Card Reader |
| Audio | 3.5mm Audio Jack |
| ROM | 16GB/32GB EMMC |
| Network | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| RAM | 2GB/4GB |
| CPU | Rockchip RK3288 |
This is a table of technical parameters for the RK3288 Board product. It is an Industrial Control Board and android 7-10 motherboard.
Product Customization Services for RK3288 Board
Sunchip and ADW offer customization services for the following models of PCBA boards and mainboards for Industrial Control Board:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Q: What is the brand name of this board?
A: The brand name of this board is Sunchip & ADW.
Q: What are the different model numbers available for Rockchip RK3288 board?
A: The available model numbers are AD-B02P, AD-Z37, AD-Z37M, AD-Z33, and AD-Z33M.
Q: Where is this board manufactured?
A: This board is manufactured in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 2pcs.
Q: What is the price of this product?
A: The price of this product is negotiated.
Q: What are the packaging details for this product?
A: The packaging details for this product is 60pcs/Carton or 90pcs/carton, which depends on the board types.
Q: What is the delivery time for this product?
A: Samples sent out 1-7 days, MP lead time 15-30 days.
Q: What are the payment terms for this product?
A: 100% T/T for samples, Negotiated for MP.
Our main products:
-Android embedded motherboard
-4K/8K player box of media or industrial
-Different kinds of AIO lcd digital signage display machine
Let me know if any interest, will be happy to show you more details by return. thanks!
