Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Sunchip |
| Model Number : | AD-Z33 |
| Certification : | CE,RoSH,FCC |
| Price : | Negotiation |
| Payment Terms : | T/T, PayPal, L/C, MoneyGram |
| Supply Ability : | 60000/Month |
| Delivery Time : | 1~3 days if have stock, 15-30 days if out of stock |
Model NO.: AD-Z33

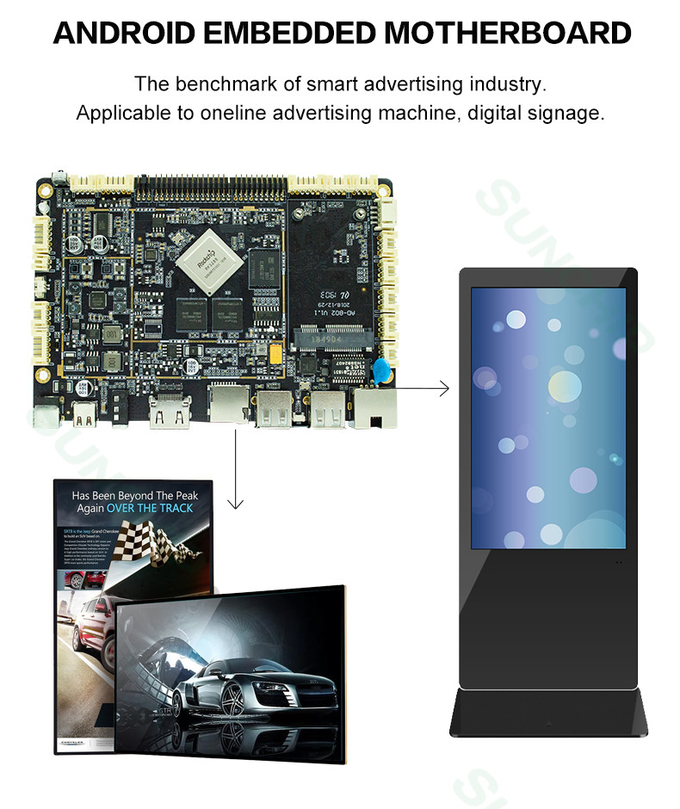

The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
Brand Name: Sunchip
Model Number: AD-Z33
Place of Origin: China
Certification: ISO 90001, ISO 27001
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: 60pcs/box
Delivery Time: 2-5days
Payment Terms: TT in advance
Supply Ability: 600000/Month
OS: Android
CPU: Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Expandable Memory: Yes, SD Card Support
Main Frequency: 1.8 GHz
Display: HD / LVDS /MIPI /EDP
Android Embedded Circuit Board, Android SBC, Android Arm Board
| CPU | Rockchip RK3288 Quad-Core Cortex-A17 Quad-Core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Support maximum resolution 1920x1080, support 7"-84" display |
| EDP port | |
| Backlight Voltage | Support 3.3V / 5V / 12V optional |
| Touch screen | Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With WIFI & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals) | |
| 3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.) | |
| TF card, maximum support 32GB | |
| Class D amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
The Android Embedded Board from Sunchip is a powerful and versatile Arm-based board with a very low power consumption. This Android board is equipped with an advanced 1.8 GHz main frequency processor, Wi-Fi, Bluetooth, Ethernet, 4G LTE, 3.5mm Audio Jack, UART X3, GPIO, and DC 12V power supply. It is certified with ISO 90001 and ISO 27001 and has a minimum order quantity of 2pcs. The Android Arm Board offers great flexibility and can be used for a variety of applications. It can be used in industrial automation, medical equipment, robotics, home entertainment systems, vending machines, digital signage, and many other applications. It is also perfect for Android PCBA and other embedded projects requiring a reliable and high-performing hardware platform. The Android Embedded Board is available at a very competitive price and comes with a 60pcs/box packaging. It has a maximum supply capacity of 600000/Month and delivery time of 2-5days. Payment is accepted through TT in advance.
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
We provide technical support and service for our Android Embedded Board product to help customers get the most out of their purchase. Our technical support team is available 24/7 to answer any questions or concerns you may have, and to provide comprehensive solutions to any issue.
Our service team provides timely and reliable service and maintenance on all of our products, ensuring that your Android Embedded Board is running optimally. We also provide software updates to keep your product up to date and running smoothly.
We are committed to providing our customers with the highest level of technical support and service, and we strive to exceed your expectations. If you have any questions or concerns, please do not hesitate to contact us.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
digital signage media player
advertising player
lcd advertising player
open frame lcd display
wall mounted advertising display
FAQ
Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has
12-years old from Shenzhen, China. We have a good reputation in
this industrial area when you check it with almost all of Shenzhen
industrial suppliers.
Q2: How long will you ship out the goods after I place the order on
you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship
out. Before shipping, we should do aging testing and normal
function testing, QC inspection, then, ship out. If out of stock
and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital
signage machine, will take about 15-30 days, depending the product
quantities and types.
Q3: After i get the products what if my products broken, what kind
of service you support?
A: First contact us, tell us about the problem, our engineer will
help to handle; secondly, you can send back the products to us, we
will fix it. we support 12 months warranty, any problem catches me
online, we can give you good solution way. we want to do long term
business with you not just for 1 day 1 time.
Q4. Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
Hope to get your kindly advice and let's work together to create something amazing !
