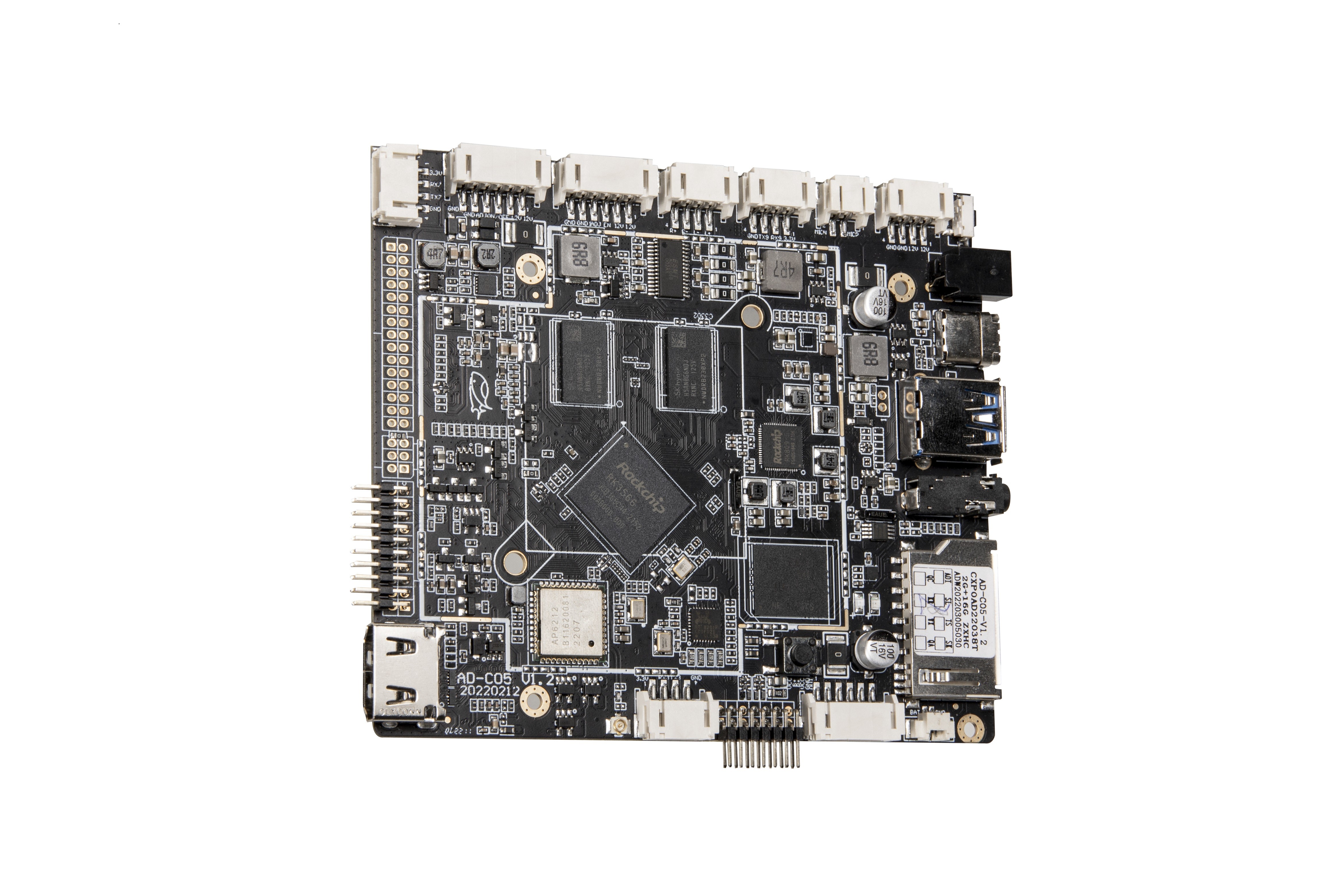

Integrated Quad-core RK3566 Android 11 EDP LVDS MIPI with Multiple Interactive and Network Interfaces

Model No: AD-C05-V1.2

Sunchip is one of Apple's provider.We have provided advertising screen to Apple.

We are professional manufacturer and designer of LCD digital signage and Android board which was established in 2012,

we have more than 80 engineers focus on Android mainboard's software and hardware R & D, commercial media player/box(support Android and Linux OS), also provide SKD parts for LCD digital signage.

Overview:

The intelligent industrial all-in-one board adopts the Rockchip RK3566 quad-core chip solution and supports the Android 11 system. Powerful computing power. Support multiple types of display interface, rich peripheral interface, enhanced power management circuit. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.

Characteristic:

• Support EDP interface display screen.
• Support LVDS interface display screen.
• Support MIPI interface display screen.
• Support HDMI 2.0 high-definition output.
• Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
• Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
• Multi-channel USB interface, serial port.
• Strong anti-electromagnetic interference and electromagnetic compatibility.

Basic Hardware Specification

Shenzhen Sunchip Technology Co., Ltd is a distributor and solutions provider of Allwinner, Rockchip and Espressif SOC, and a leading supplier of AI robots, video encoding & decoding products, intelligent terminals, commercial&industry devices and IOT products.

At present, Sunchip's products include AI education robots, sports cameras,industrial ARM motherboards, TV boxes, VR/AR all-in-one, interactive lcd digital signage. Sunchip are committed to the development of AI, VR, AR, IOT technology, with the professional R&D team, Sunchip has mastered a complete set of high definition video encoding&decoding solutions and technology on mass production. Sunchip offers one-stop service for product conceptualization, software&hardware design and development, manufacturing, and after-sales support and diversified delivery methods on SOC, PCBA hardware + software integration, software customized development, OEM / ODM products, etc for customers around the world.

HARDWARE DESIGN

We are providing services & solutions in electronic board design for digital signage industries & domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as Wearable devices, Industrial Automation, Smart home, Consumer electronics, Embedded digital signage devices and sensors.

Sunchip team of engineers and technicians are experienced in developing advanced embedded products utilizing all aspects of electronic technology. We have a strong expertise in advanced, high-speed, complex board design and development. Our exposure to complete product development life cycle from paper specification to architecture definition, from proof-of-concept to component selection and placement, from PCB layout to PCB fabrication and production ready hardware platform.
