| Brand Name : | ADW |
| Model Number : | AD-Z37M |
| Certification : | CE, ROHS, ISO9001 |
| Price : | $43USD~$59USD |
| Supply Ability : | 1,000,000 Pieces per Month |
| Delivery Time : | 5-8Working days |

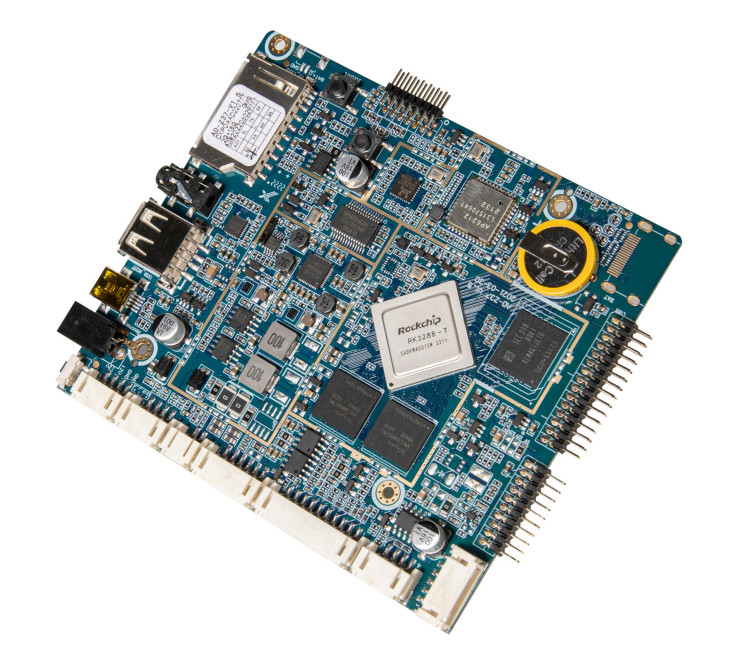

Quad-core RK3288 Android ARM Board for Multi Interaction & Network Interfaces
Model No: AD-Z37M
Product Overview
Smart industry all in one board, using Rockchip RK3288 quad-core chip program, support Google Android4.4 and 5.1 above system. Powerful computing power. Support H.265 4K video playback. Interface rich, enhanced power management circuit. Applicable to intelligent remote network control: class industry, medical, large advertising machine, educational video terminal and other equipment.
Feature
Basic Hardware Spec:
| CPU | Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional(defaulted 8GB) |
| Display interface | MIPI, Max. 1920*1080P. |
| EDP, max. resolution 4K | |
| Mainboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen | Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100 Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol(optional) Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI Camera |
| 4 USB HOST,1 USB OTG (Support usb camera @500W, usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone | |
| HDMI 2.0 output format | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video | Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Ouput: DC12V 3A |
Basic Software Spec:
| Operating system | Above Google Android 4.4 &5.1 /LINUX Debian |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time | |
| Support OTA remote upgrade |
WHY CHOOSE SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
BTW, Sunchip has more than 3200 square meters of factory and office, totally we have two floors in this building. Recently we plan to extend our office, because more younger people join us, we need more office. Moreover, more and more orders, seems that we also plan to extend our factory.
We got a lot of certificates, like, CE, ROHS, FCC on many products. Some clients, like from Japan, Korea, Thailand, requested to do TELEC, KC and TISI. We can do all of them.
More recommendations of ARM Motherboard:
WELCOME TO CONTACT US.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
|
|
