Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | SUNCHIP & ADW |
| Model Number : | AD-C58 |
| Certification : | CE FCC ROHS ISO9001 ISO14001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, PayPal |
| Supply Ability : | 60000PCS/Month |
| Delivery Time : | Samples: 1-3 days; MP: 30 days; |

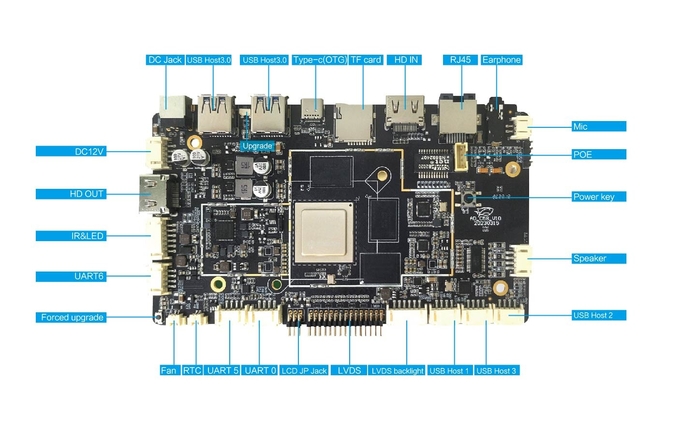

RK3588 Octa Core Android Board With 4/8/16GB LPDDR4 Memory and 8/16/32/64GB eMMC
Product Model: AD-C58
Product Name: RK3588 Android Board
The large board of the intelligent industrial all-in-one machine adopts Rockchip RK3588 eight-core chip solution. Support Android 12 system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.
◆ High integration.Integrated USB/LVDS/ Gigabit Ethernet /WIFI6/BT5.2/eDP extension/microphone and other functions, simplify the overall design, the overall design is more beautiful.
◆8K@60fpsH.265/VP9/AVS28K@60fpsH.264/AVC/MVC4K@60fps AV1 and other video coding and LVDS/eDP/MIPI signal LCD display.
◆ Support HD IN/OUT
◆ Bring your own amplifier.Support dual channel 8R/5W power amplifier.
◆ Abundant interfaces.Support USB(2 USB3.0)/ serial port /GPIO/ADC interface expansion, can meet the market mainstream peripherals.
◆ Complete functions.Supports horizontal and vertical playback, video split-screen, scrolling subtitles, timing switch, USB data import and other functions.
◆ Easy management: humanized playlist making software, easy to play advertising management and control.
Brife information :
RK3588 ARM Quad Cortex-A76 and Quad Cortex-A55 2.4 GHz
▪ Onboard 4/8/16GB LPDDR4 memory and 32/64/128GB eMMC(Option)
▪ 1 x HD Out (8K 60fps), 1 x HD IN (4K 60fps), 1 x MIPI DSI, 1x
LVDS
▪ 6T NPU support
▪ 2 x USB3.0, 2 x USB2.0 , mutiple ports for different devices
▪ WIFI 6/BT support
▪ RTC support
▪ Android12 support
Main Features:
Support LVDS, MIPI, EDP interface display three-screen simultaneous/different display + HD OUT (up to 8K@60FPS), HD IN (up to 8K@60FPS).
Various interactive mode interfaces: capacitive touch, infrared touch, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet (Gigabit), Wireless Wifi (Wifi6), BT 5.0.
Multi-channel USB interface, serial port.
Strong anti-electromagnetic interference and electromagnetic compatibility.
Product Features:
Support multiplexed display , LVDS, EDP , MIPI, HD Input and HD output (single-port maximum support 7680*4320 60HZ)
Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
Multiple network interfaces: Ethernet, wireless WIFI, BT.
Multiple USB interfaces, LVDS.
Strong resistance to electromagnetic interference and electromagnetic compatibility.
Product Specification:
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 | |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | |
| GPU | ARM Mali-G610 MC4 | |
| OpenGL ES 1.1/2.0/3.1/3.2 | ||
| Vulkan 1.1,1.2 | ||
| OpenCL 1.1,1.2,2.0 | ||
| Embedded high-performance 2D image acceleration module | ||
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x | |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) | |
| Display interface | HDMI OUT(Up to 8K@60FPS) | |
| HDMI IN(Up to 8K@60FPS) | ||
| LVDS display interface | ||
| EDP display interface | ||
| MIPI display interface | ||
| Screen voltage | Support 3.3V/5V/12V optional | |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. | |
| Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | ||
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation, support gravity sensing function | |
| Real Time Clock | Built-in real-time clock powered by battery | |
Interface device | Support MIPI interface camera, support 500W pixels | |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 2 USB HOST3.0 (standard interface) | ||
| 1 full-featured Type-C interface (OTG) | ||
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
| TF card, maximum support 128GB | ||
| Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format | |
| Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS | |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | |
Basic Software Specification :
Operating system | Android 12 and above |
Basic software function | Web browsing, web chat, email, e-books, explorer |
Sound mode | Clock, Alarm Clock, Calculator, Recording |
Language support | Multi-lingual |
Recording | Support MP3, WMA format recording |
Tools | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather+clock | |
recording |
Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
GOOGLE Market | |
Gmail | |
Google talk |
System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
Original ecological Android system, open root permission, and can carry out product customization development | |
Customizable local or remote server management system | |
Support multiple third-party Android remote advertising publishingsystems | |
Support multiple serial devices, USB devices, IO control devices |
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
