Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | ADW |
| Model Number : | AD-K28P |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1,000,000pcs per month |
| Delivery Time : | 1~3 days if have stock, 30days if no stock |
Android 10 All In One Board Using Rockchip RK3399 Six Core Chip
Android 10 RK3399 Pcba Dual Band WiFi Embedded Industrial Android Board support LVDS EDP MIPI HD 4K resolution LCD
Description:
◆ RK3399’s super high-performance CPU, equipped with Android/Linux system (Android7.1/Android10 is in the process of adaptation), and Antutu runs to 10W+ scores.
◆ 10/100M/1000M self-adaptive Ethernet interface, support Wake-On-Lan(WOL) remote boot.
◆ Support multi-format video decoding, and support LCD displays such as HD (4K/60fps), dual-channel LVDS (1080P), EDP (2K/fps),etc., and support multi-screen co-display and dual-screen with different display modes.
◆ Support 4G data communication, 5gG & 2.4G WIFI and Bluetooth.
◆ Support timing boot function
◆ Abundant expansion interfaces: 4x USB2.0 interfaces, 1 xUSB3.0 interfaces, 1 IR interface, 3 UART interfaces (TTL level), LVDS,EDP ,MIPI interfaces, TP interface, servo interfaces, 1 dual-channel speaker interface, etc., which can meet the application requirements of a variety of industries.
◆ It perfectly supports a variety of mainstream touch screens such as infrared, capacitance, resistance, and touch film
Overview:
The Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Characteristic:
It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
Multi-channel USB interface, serial output.
Support 4K video play with HDMI 2.0 HD output.
Strong anti-electromagnetic interference and electromagnetic compatibility.
Product Specifications
Hardware specifications
CPU | Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU |
GPU | ARM Mali-T860MP4 GPU |
Run and save | LPDDR4 4G |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
EDP screen interface, maximum resolution 4K | |
MIPI screen interface, maximum resolution 1920*1080 | |
Screen voltage | Support 3.3V/5V/12V optional |
Touch screen | Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch |
Network | With RJ45 interface, support 10/100 Ethernet |
Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional) |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera |
6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.) | |
SD card, maximum support 64GB | |
Class D power amplifier: 3W*2 8 ohms, support microphone | |
HDMI 2.0 output | |
Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format |
Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function |
Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications
Operating system | Android 7.1/8.0/9.0/ 10.0 Optional |
Basic software functions | Web browsing, email, e-book, resource manager |
Sound effect mode | Clock, alarm clock, calculator, recording |
Voice support | Multinational voice |
Recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather + clock | |
Recording | |
File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
Gmail | |
System Management | APK installer |
The original ecological Android system, open root permissions, can be customized product development | |
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
Support OTA remote upgrade | |
System setting | |
Google Maps | |
Global time |
About Sunchip
Established in 2011, Shenzhen Sunchip Technology Co., Ltd. is a comprehensive enterprise integrating design, research, development and production in digital consumer electronics products and solution provider. Our factory is located in Baoan district, Shenzhen city, near with Baoan International airport, which has more than 3200 square meters of standardized office base. Our company has been committed to the R and D and innovation in the field of digital electronics, complete and scientific quality management system and professional R&D team, strong product research and development, production capacity and perfect service system, make the company always keep the lead in the related fields. We regards quality as life and already passed ISO international quality system certification ISO9001/ MFi / CE / RoHs / FCC.From raw materials procurement, product production, testing, packaging, marketing and so on each link are carried out in strict accordance with the national standard quality. Sunchip has a over 80 research and development engineers team,high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including USA, UK, Germany, Italy, Japan,Korea, Turkey, Russia, Mexico, Brazil, Thailand ,Middle east and South Africa. Our sales team attends major exhibitions every year to close the distance with customers. Based on the principle of customer first, sales engineers have assisted customers to complete many projects, which are well received by customers. We are looking forward to cooperating, growing and developing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
Our Advantages:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI,
Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
Contact: Zoe
Tel: +86 13823275318
Whatsapp:+86 18165515965
Email/Skype: zoe@sunchip-tech.com
Hope to get your kindly advice and let's work together to create something amazing !
New Arrival!!!

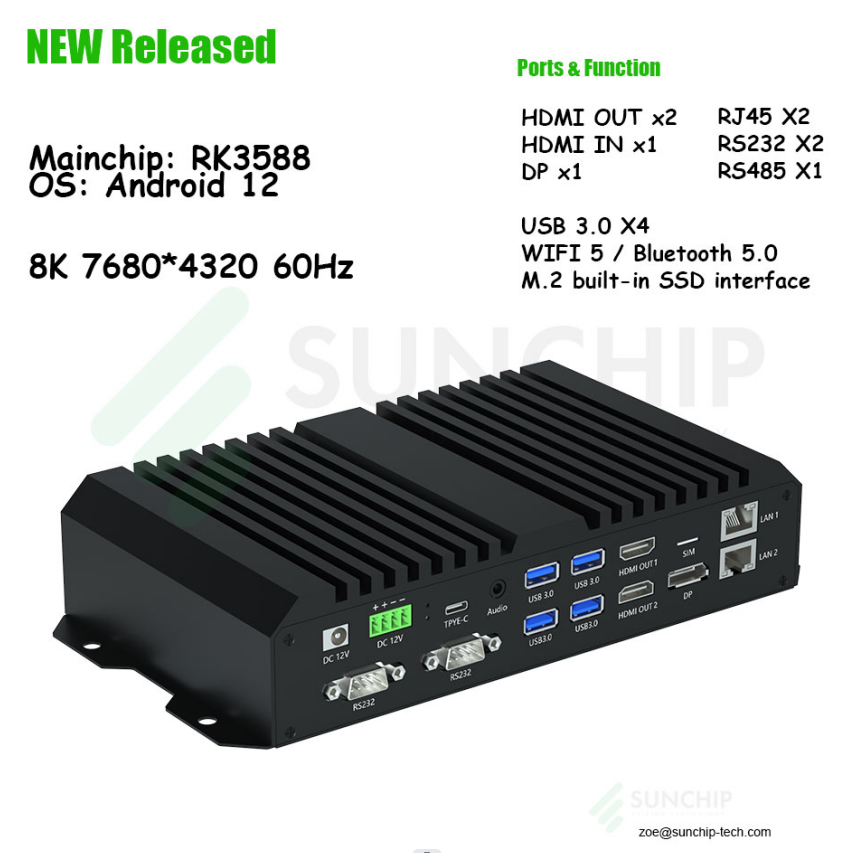

8K RK3588 AIot Edge Computing industrial box with rich interfaces, which suitable for intelligent remote network control: AIoT , industrial, medical, large advertising, educational video terminals and other equipment.
Here is the product image , few box in stock now, welcome to contact me to get more details information.
|
|
