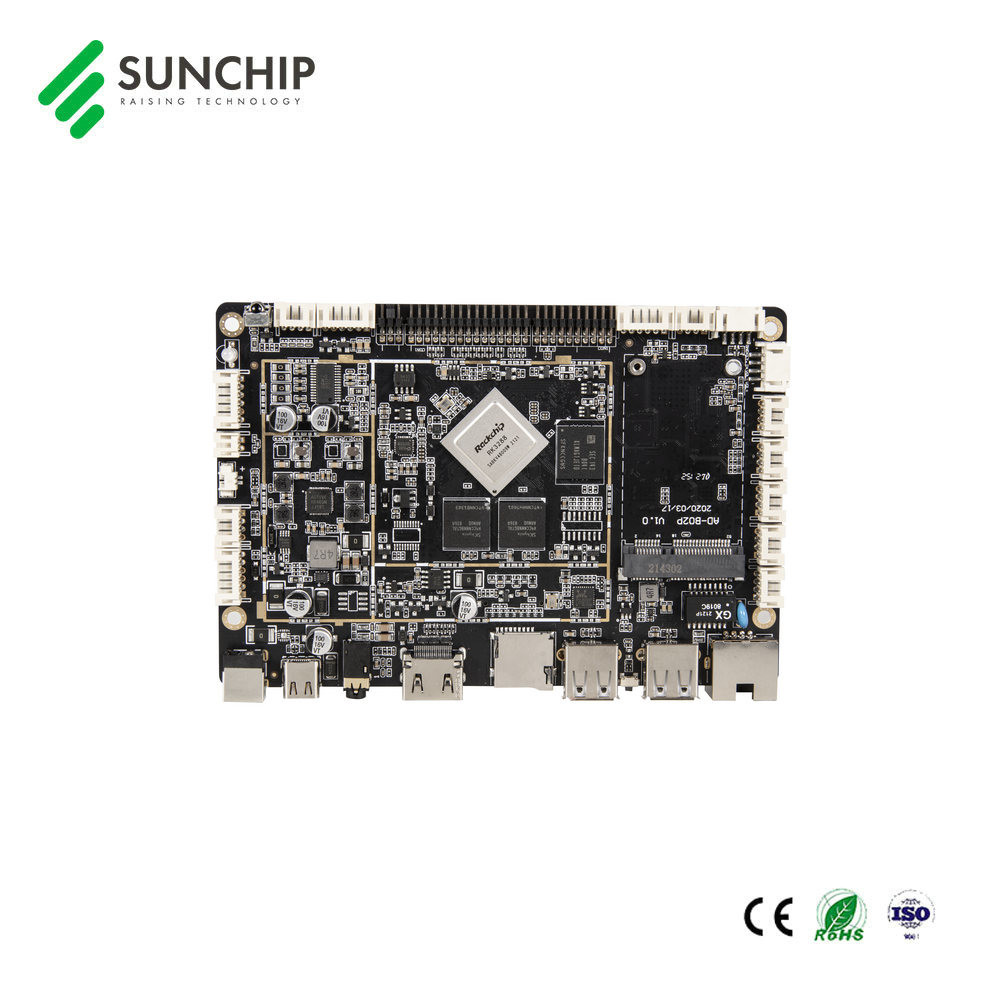

Industrial Motherboard RK3288 development board for advertising machines and lcd digital signage solution LVDS EDP HD
Model AD-B02P V1.5
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
Hardware specifications:
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
The internet | With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
| operating system | Android 6-10 |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| language support | multi-lingual |
| recording | Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format |
tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
The internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK installer |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
Application:
RK3288 can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
