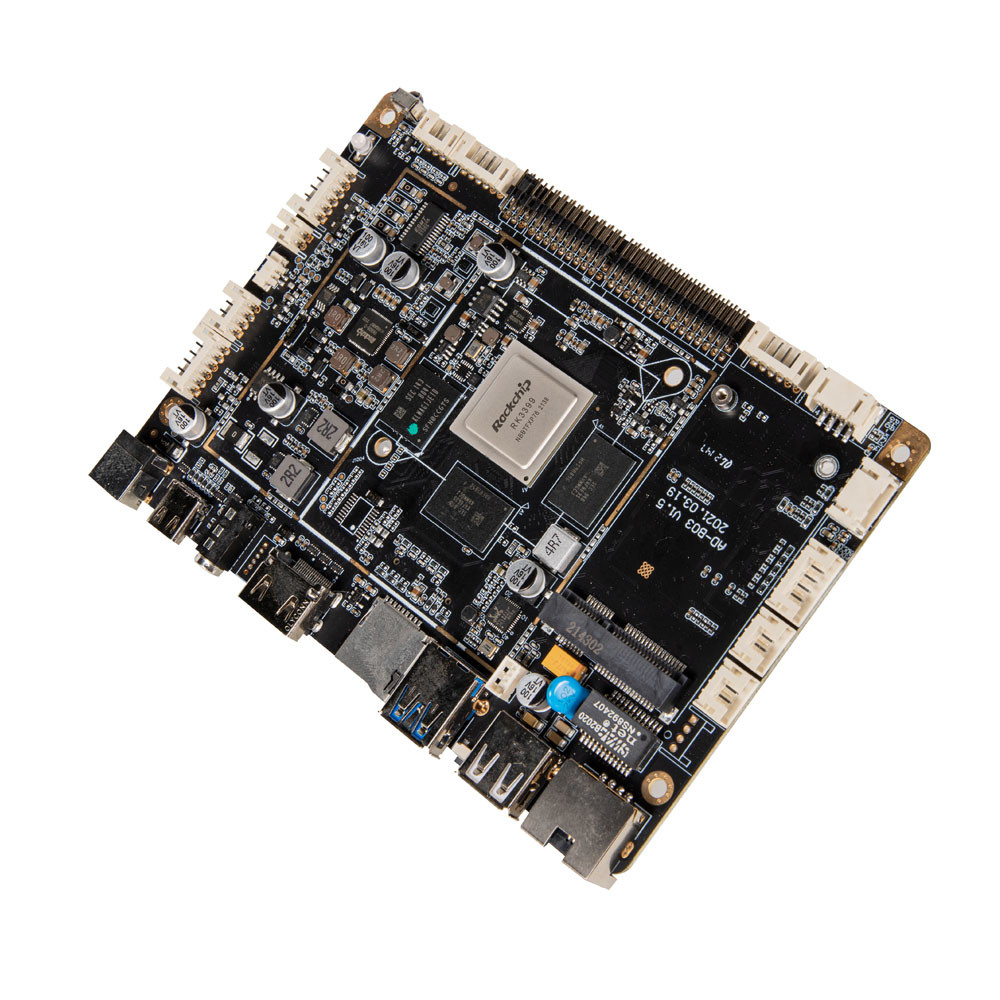

High Performance ARM Embedded Rk3399 Main Board Android System Iot Board Support PCBA Hardware Customization

Overview for Embedded System Board:

Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristic for Embedded System Board:

• It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
• Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
• A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
• Multi-channel USB interface, serial output.
• Support 4K video play with HDMI 2.0 HD output.
• Strong anti-electromagnetic interference and electromagnetic compatibility.

Sunchip is a professional android board designer/manufacturer in Shenzhen, China.

We have a team that includes more than 150 people. In this team, R&D has more than 80 employees that involving hardware engineers (layout, debugging), software engineers (Driver, Kernel, testing, APK), ID designer and Mechanical Engineers.

Basic hardware specifications for Embedded System Board:

CPU	Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
GPU	ARM Mali-T860MP4 GPU
Deposit	LPDDR4 4G
Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (Default 16GB)
Display interface	LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
	EDP screen interface, support resolution 1920x1080
Screen voltage	Support 3.3V/5V/12V optional
Network	With RJ45 interface, support 10/100/1000 Ethernet
	Support 4G PCIE interface
	With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0
Image rotation	Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI camera x2
	USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0
	3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)
	TF card, maximum support 64GB
	Class D amplifier: 5W*2 8 ohms, support microphone
	HDMI 2.0 output
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video	Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture	Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
Power Adapter	Input:AC100-240V.50-60HZ, Output: DC12V/3A

Basic software for Embedded System Board:

Operating system	Android 7.0
Basic software function	Web browsing, email, e-book, resource manager
Sound mode	Clock, alarm clock, calculator, recording
Voice support	Multinational voice
Recording	Support MP3, WMA format recording
Tool	Calendar
	Alarm Clock
	Calculator
	Note
	Weather + clock
	Recording
File processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule	Calendar
Input	Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet	Browser -Chrome Lite
	Email
	Gmail
System Management	APK installer
	Original Android system, open root permissions, product customization development
	Real-time remote monitoring, 7*24 hours unattended
	Support OTA remote upgrade
	System setting
	Google Maps
	Global time
