Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Sunchip, ADW |
| Model Number : | AD-0146 |
| Certification : | ISO 90001, ISO 27001 ,CE, ROHS |
| Price : | Negotiation |
| Delivery Time : | 1-5days |
| Payment Terms : | TT in advance |
| Supply Ability : | 60000/Month |

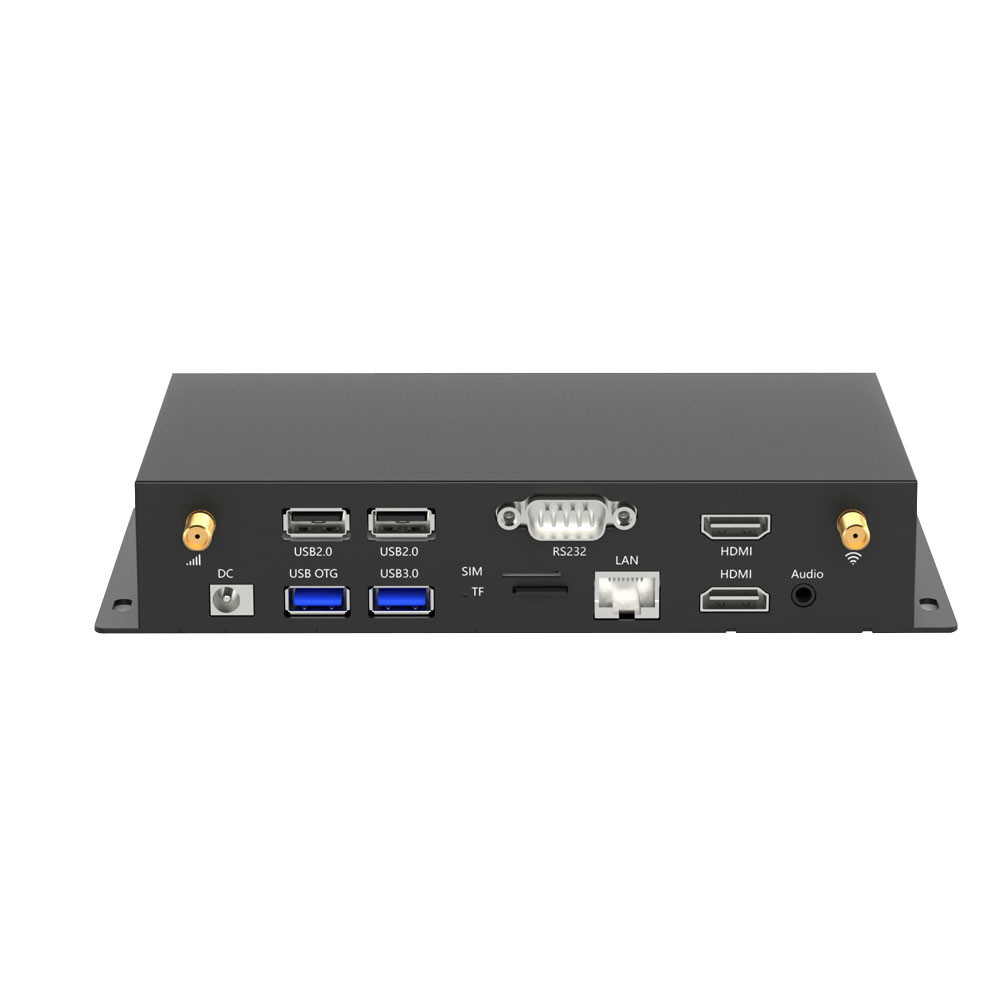

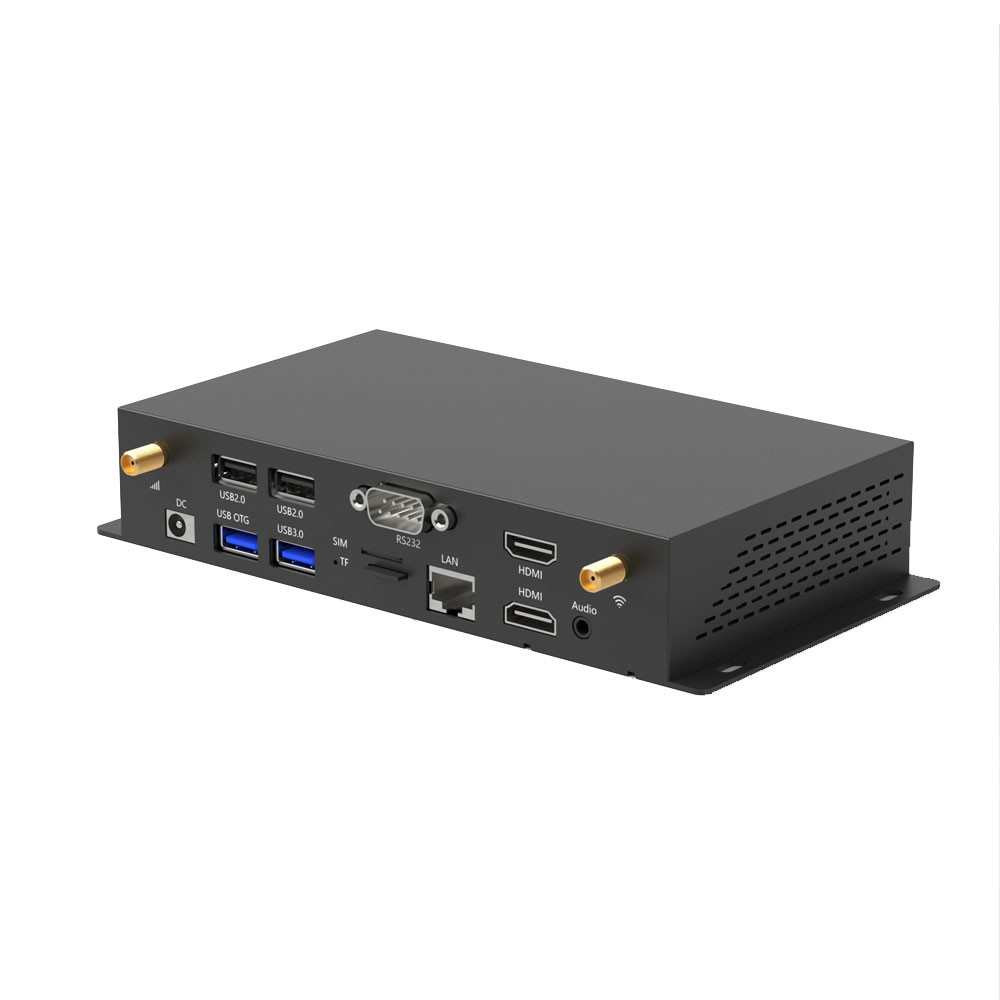

High Performance Media Player Rockchip RK3568 4K digital signage player box Edge computing device
Model: AD-0146 BOX
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
| System | CPU | Quad-core 64 bits Cortex-A55,main frequency up to 2.0GHz | |||||||||||||
| GPU | ARM G52 2EE, supporting OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1, Embedded with high performance 2D acceleration hardware | ||||||||||||||
| NPU | Support 1T computing power | ||||||||||||||
| RAM | 2GB/4GB (optional) | ||||||||||||||
| ROM | 8GB/16GB/32GB/64GB (optional) | ||||||||||||||
| OS | Android 11 | ||||||||||||||
| Network | WiFi | IEEE 802.11b/g/n (Optional) | |||||||||||||
| Ethernet | Support 10/100/1000M Ethernet | ||||||||||||||
| Mobile Network | Support 4G lte netowkr (Optional) | ||||||||||||||
| Bluetooth | Bluetooth 5.2 | ||||||||||||||
| Interfaces | Upper Layer Interfaces | RS232 | RS232 Male DB9*1 | ||||||||||||
| USB 2.0 | USB 2.0_A *2 | ||||||||||||||
| HDMI_OUT_2 | HDMI-A display port and support 1920*1080 60HZ output | ||||||||||||||
| Lower Layer Interfaces | DC*1 | DC_12V input and 5.5*2.1mm plug | |||||||||||||
| Earphone | 3.5mm and support Stereo headphone output | ||||||||||||||
| USB_OTG | USB_A *1 | ||||||||||||||
| USB 3.0 | USB 3.0_A *1 | ||||||||||||||
| HDMI_OUT_1 | HDMI-A 2.0 display output(Support 3840*2160 60HZ output) | ||||||||||||||
| SIM Card Slot | SIM Card Slot *1(Optional) | ||||||||||||||
| Extended Memory port | TF Card Slot *1 | ||||||||||||||
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Q1: How did I trust your company?
A: SUNCHIP a software and hardware solution provider who has
12-years old from Shenzhen, China. We have a good reputation in
this industrial area when you check it with almost all of Shenzhen
industrial suppliers.
Q2: How long will you ship out the goods after I place the order on
you?
A: If in-stock, usually, it’ll take 1-3 days to prepare and ship
out. Before shipping, we should do aging testing and normal
function testing, QC inspection, then, ship out. If out of stock
and need to re-produce the goods, it will take different lead time.
For android board, android media player box, android LCD digital
signage machine, will take about 15-30 days, depending the product
quantities and types.
Q3: After i get the products what if my products broken, what kind
of service you support?
A: First contact us, tell us about the problem, our engineer will
help to handle; secondly, you can send back the products to us, we
will fix it. we support 12 months warranty, any problem catches me
online, we can give you good solution way. we want to do long term
business with you not just for 1 day 1 time.
Q4. Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
digital signage media player
advertising player
lcd advertising player
open frame lcd display
wall mounted advertising display
SUNCHIP product list:
●Android Embedded ARM Board,
●Digital Signage Media Player Box,
●AI / IOT & 8K/4K Player Box,
●Open Frame LCD Display Signage,
●All-In-One LCD Digital Signage Display,
●etc., …
By the way, all of our Android industrial Embedded ARM board and other products are based on these cpu solutions, such as,
●RK3588,
●RK3399,
●RK3288,
●RK3568,
●RK3566,
●RK3328,
●RKPX30,
●RK3188,
●RK3128,
●etc. from Android 7.1 to 12 OS version.
