Reliable Android Mainboard RK3288 LVDS EDP Rich Connectivity High-Speed Video Decoding for Automotive / digital signage / digital menu etc.

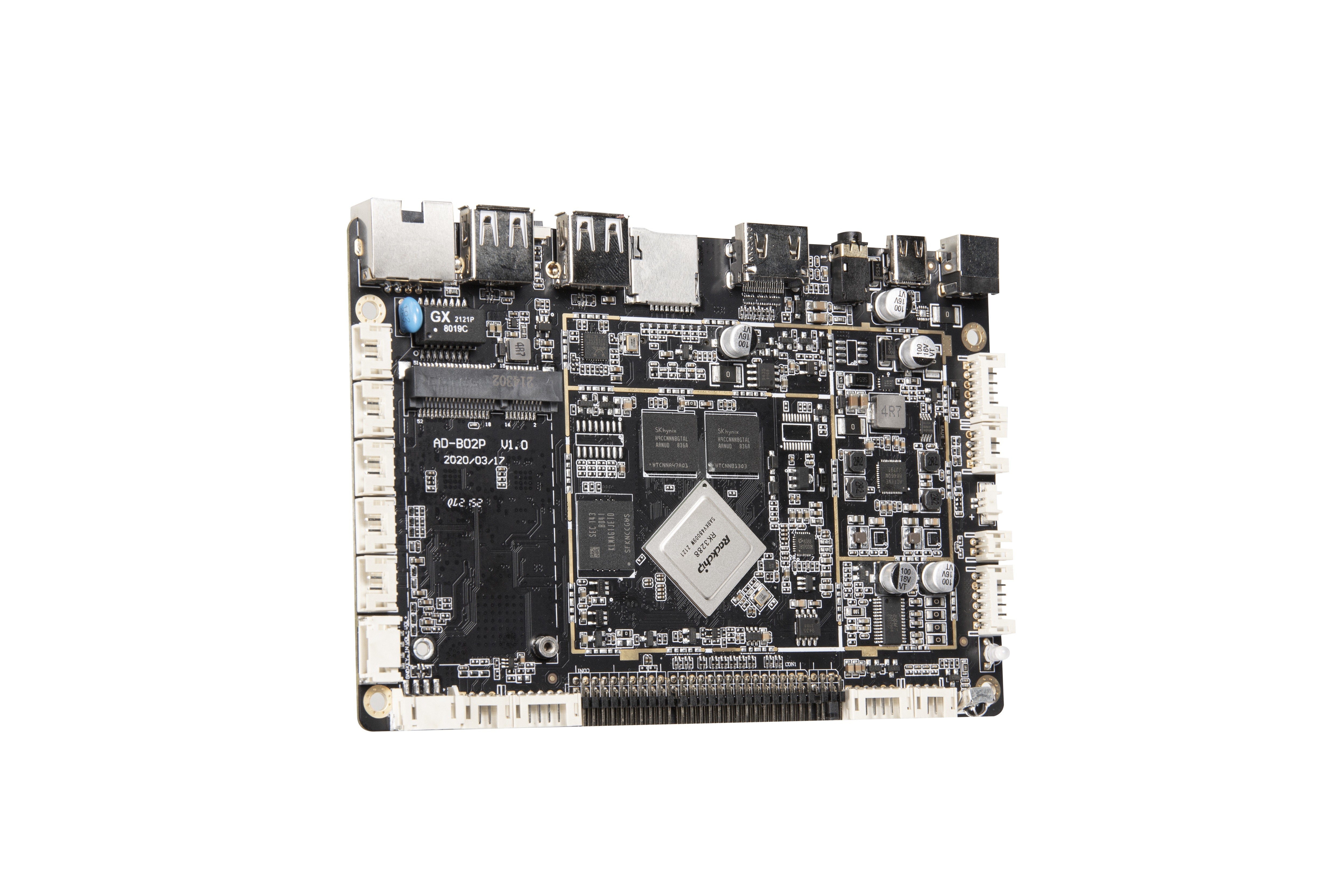

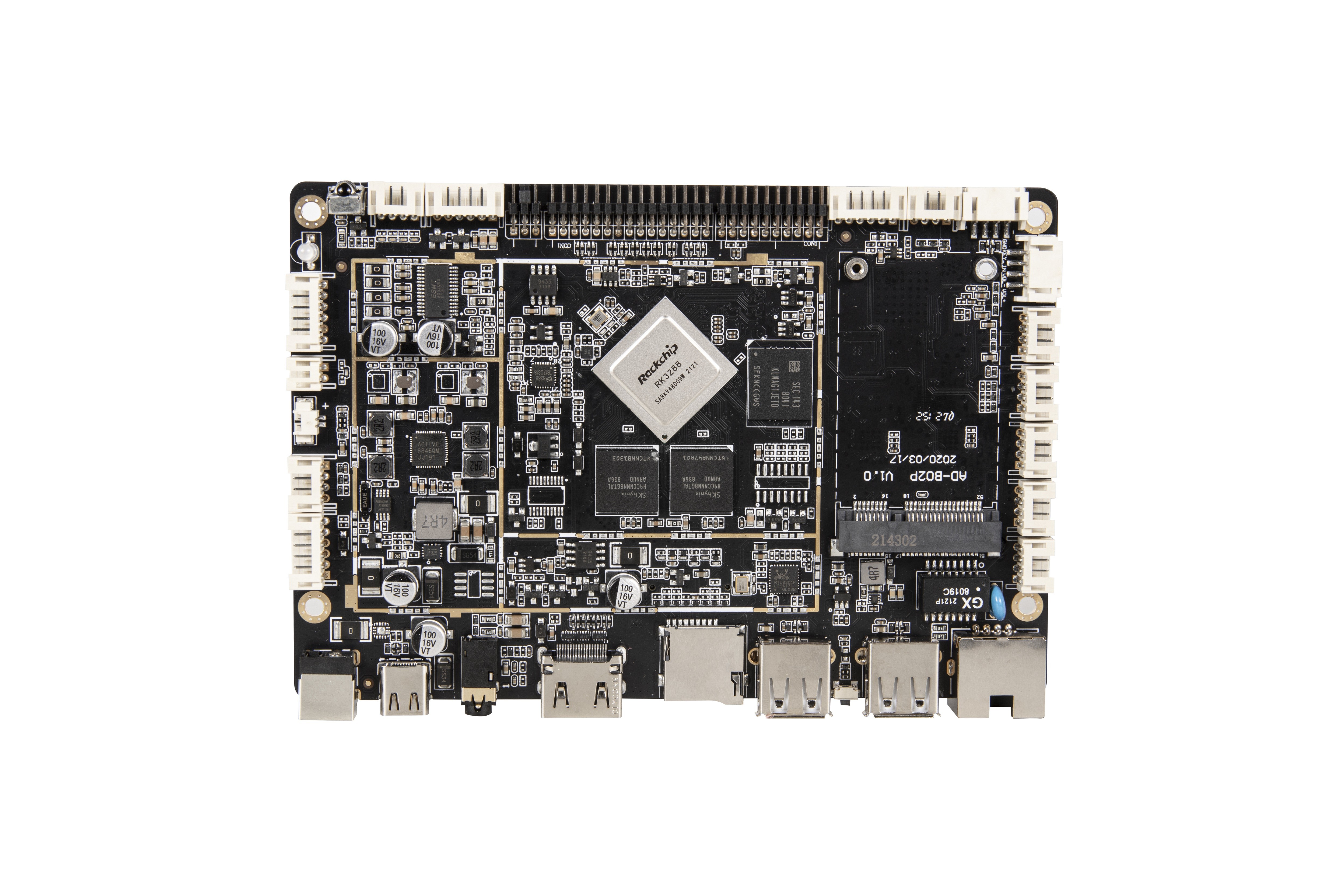

Model: AD-B02P
RK3288 Board is an android 7-10 mainboard/motherboard powered by a powerful Quad-core processor that offers great performance and stability. It comes with a TF Card Reader, Mali-T764 GPU, LVDS/EDP/MIPI/HD Out display connectors, a 3.5mm audio jack, and support for both USB cameras and MIPI cameras. This Display PCB Board is ideal for multimedia applications and digital signage, and is perfect for a variety of projects. It is designed to be low-cost, reliable and efficient, and is easy to use, making it perfect for developers and hobbyists. With its long-term availability and real-time support, the RK3288 Board is the perfect choice for anyone looking for a reliable and powerful android mainboard/motherboard.
RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen. With HDMI interface, it supports 4K video playback. Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features, it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.
| Parameter | Value |
|---|---|
| Card Reader | TF Card Reader |
| Bluetooth | 5.2 |
| RAM | 2GB/4GB |
| GPU | Mali-T764 |
| Audio | 3.5mm Audio Jack |
| Network | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| Power Supply | DC 12V/2A |
| OS | Android 7-10 Version |
| ROM | 16GB/32GB EMMC |
| CPU | Rockchip RK3288 |
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
The internet | With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
The RK3288 Board by Sunchip and ADW is an Industrial Motherboard that offers amazing performance and reliability for various applications. This mainboard is powered by a Rockchip RK3288 CPU with 2GB/4GB RAM and a TF card reader. It also has Bluetooth 5.2 and a DC 12V/2A power supply. The mainboard meets all the necessary CE, ROHS, FCC, and ISO9001 certifications and is available in AD-B02P, AD-Z37, AD-Z37M, AD-Z33, and AD-Z33M models. The minimum order quantity is 2pcs and the pricing is Negotiated. The Supply Ability is 10,000pcs/Month and the Delivery Time for samples is 1-7 days and for MP is 15-30 days. The payment terms are 100% T/T for samples and Negotiated for MP. This mainboard also comes in a 60pcs/Carton packaging.
The RK3288 Board is ideal for many applications due to its superior performance and reliability. It is suitable for Industrial Automation, Vehicle Navigation System, Digital Signage, Advertising Machine, POS Machine, Kiosk, Medical Equipment, Smart Home, Smart Home, and many other usage scenarios. Its small size and low power consumption make it the perfect choice for those looking for an efficient and reliable mainboard.
Brand Name: Sunchip, ADW
Model Number: AD-B02P, AD-Z37, AD-Z37M, AD-Z33, AD-Z33M
Place of Origin: China
Certification: CE, ROHS, FCC, ISO9001
Minimum Order Quantity: 2pcs
Price: Negotiated
Packaging Details: 60pcs/Carton
Delivery Time: Samples sent out 1-7 days, MP lead time 15-30 days
Payment Terms: 100% T/T for samples, Negoticated for MP
Supply Ability: 10,000pcs/Month
Power Supply: DC 12V/2A
Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
Display: LVDS/EDP/MIPI/HD Out Are Optional
Camera: Support USB Camera And MIPI Camera
CPU: Rockchip RK3288
PCBA board, Industrial Circuit Board, android mainboard
RK3288 Board technical support and services include:
SUNCHIP mainly manufactures:
●Android Embedded ARM Board,
●Digital Signage Media Player Box,
●AI / IOT & 8K/4K Player Box,
●Open Frame LCD Display Signage,
●All-In-One LCD Digital Signage Display,
●etc., …
By the way, all of our Android industrial Embedded ARM board and other products are based on these cpu solutions, such as,
●RK3588,
●RK3399,
●RK3288,
●RK3568,
●RK3566,
●RK3328,
●RKPX30,
●RK3188,
●RK3128,
●etc. from Android 7.1 to 12 OS version.
