| Brand Name : | Sunchip |
| Model Number : | AD-C33P |
| Certification : | ISO9001, ISO4001, ISO27001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Delivery Time : | 2-8days |

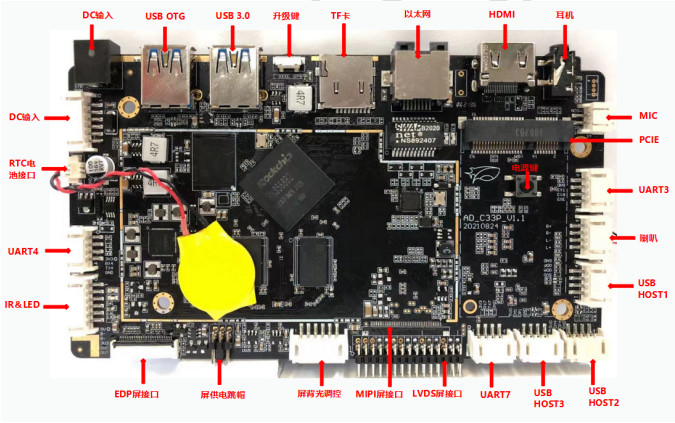

The Embedded System Board AD-C33P is an ARM based board designed for media players. It features a wide range of I/O ports, including USB 3.0, USB OTG, USB Host, GPIO, UART, I2C, LVDS, EDP, MIPI, and HD. It is designed to operate in a temperature range of -20 to 60℃, and is backed by a 1 year warranty.
The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.
Basic Hardware Information
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
The Sunchip AD-C33P RK3568 Android 11 Embedded System Board is the perfect solution for any edge computing or digital signage application. This Android motherboard offers excellent performance, reliability, and stability.
It is equipped with an Ethernet/Wi-Fi/BT/3G/4G internet connection, UART X3/GPIO serial ports, and an EMMC 16GB/32GB optional storage.
With this board, you can easily build edge computing, digital signage, and other Internet of Things (IoT) applications. It also comes with a 1-year warranty for peace of mind.
The Sunchip AD-C33P RK3568 Android 11 Embedded System Board is the perfect choice for any edge computing or digital signage application.
Intelligent industrial POS motherboard, using Rockchip solution,2.0GHz. Intelligent power management circuit supports commonly used external devices, rich interfaces and stable performance.
The board supports dual EDP and LVDS and MIPI and HDMI display output interfaces, supports 3G/4G data communication, WIFI/Bluetooth (supports 2.4G/5GWIFI) in one, supports currently popular video and picture format decoding, supports 4K, H .265 hard decoding.
Support single channel, dual channel,EDP/LVDS display, very suitable for commercial display advertising machine, POS advertising machine, touch all-in-one machine,etc.
Sunchip AD-C33P is a custom embedded system board designed for media player and arm board applications. It features a DDR4 memory of 2GB or 4GB, a size of 150*85mm, an Android 11 operating system, and an Ethernet/Wi-Fi/BT/3G/4G internet connection. The I/O ports include USB, GPIO, UART and I2C, providing you with the best performance and flexibility.
Sunchip AD-C33P is the perfect choice for media player and arm board applications. It is reliable, safe and stable, and offers maximum performance and scalability to meet your needs.
Other service in customization :
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
Embedded System Board offers a range of support and services to meet your needs.
We provide technical support in the form of phone and email support, as well as online documentation and tutorials. Our team of experts are available 24/7 to answer any questions or provide assistance.
We also offer a range of services, such as on-site installation, customisation, and maintenance. Our experienced technicians can ensure that your system is running smoothly and efficiently.
We guarantee customer satisfaction with our high-quality products and services. Our knowledgeable staff are always willing to help you get the most out of your system.
Packaging and Shipping for Embedded System Board
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
