Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | Sunchip |
| Model Number : | AD-C33P |
| Certification : | CE, ROHS, FCC, ISO9001, ISO 14001 ,ISO27001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, D/P, D/A |
| Supply Ability : | 60000PCS/Month |
| Delivery Time : | 2-8working days |

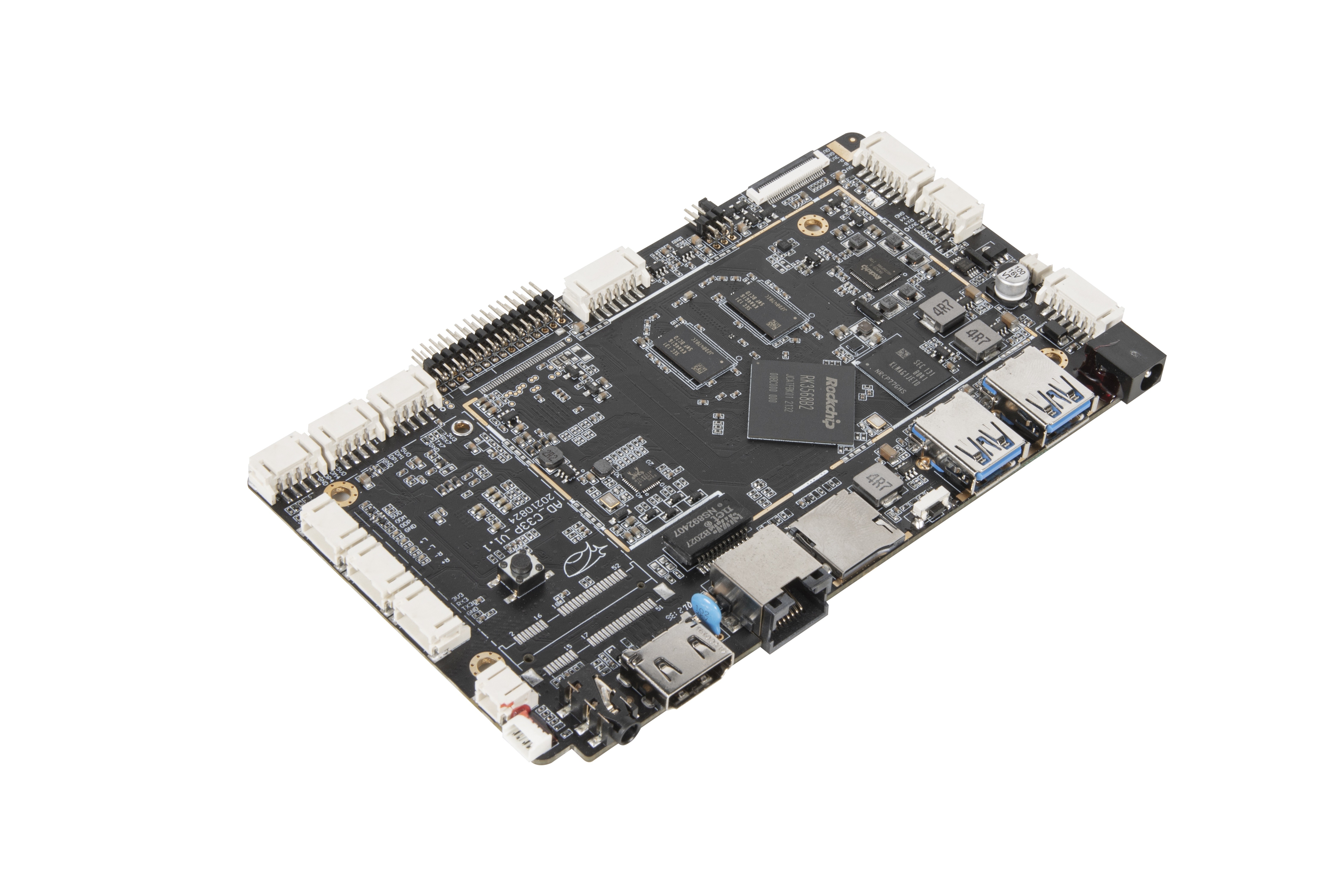

RK3568 is an Android 11 embedded system board designed for media players, digital signage and other embedded applications. It provides Ethernet, Wi-Fi, Bluetooth, 3G, and 4G internet connectivity. It has three UARTs and GPIO ports for serial communication and I/O, as well as USB, GPIO, UART, and I2C ports for input and output. It is powered by the latest Android 11 operating system, making it ideal for media player boards, digital signage boards, and other embedded applications.
Basic hardware specifications:
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Network | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
Sunchip AD-C33P Embedded System Board is an ideal edge computing board for embedded development and industrial applications. It is designed with the advanced ARM Cortex A55 quad-core processor, USB3.0 X1, USB OTG X1, USB Host X3, optional DDR4 2GB/4GB memory, Ethernet/Wi-Fi/BT/3G/4G internet, and EMMC 16GB/32GB optional storage, as well as Android 11 operating system.
This Sunchip AD-C33P embedded system board offers a powerful performance and advanced features to enable various applications, such as smart factory, intelligent retail, security monitoring, intelligent transportation, and AIoT, etc. Its small size and low power consumption make it a perfect choice for industrial automation, home automation, and other edge computing devices.
The Sunchip AD-C33P embedded system board is an ideal solution for both professional developers and hobbyists. It is highly reliable and
easy to use, making it a great tool for rapid prototyping, product development, and system integration.
The Sunchip AD-C33P embedded system board offers excellent performance, stability, and scalability, making it a great choice for any embedded development project. Its ARM Cortex A33 quad-core processor and advanced features make it a powerful and efficient solution for edge computing applications.
Sunchip AD-C33P is a high-performance embedded system board, featuring 8K video decode, edge computing and a wide range of features. It is designed with a temperature range of -20-60℃, display of LVDS, EDP, MIPI and HD, and I/O of USB/GPIO/UART/I2C. It supports Android 11, USB 3.0 x1, USB OTG x1, and USB Host x3.
This customized embedded system board is an excellent choice for those seeking improved performance and reliability. With its 8K video decode ability, edge computing board and a wide range of features, Sunchip AD-C33P is sure to meet the needs of any application. With its high quality design and superior performance, you can be sure that your system will be running smoothly and reliably for years to come.
Embedded System Board Technical Support and Services
Embedded System Board products should be packed and shipped in accordance with the following guidelines:
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
