    Anti Electromagnetic Quad Core Linux Board RK3288 Capacitive Touch AC100-240V 50-60HZ

    RK3288 Quad core Linux operation system industrial ARM embedded board

    Unit 1 Summary of Product

    Summary

    Smart All-in-one Industrial mainboard, which is based on Rockchip RK3288 Quad core chipset. It supports Android 4.4 and 5.1 or above OS. Reinforced power-management circult, supports attached devices. Ample interfaces, steady performance. It can be used in smart remote control, such as Industrial, medical, Advertise-machine, education video terminal etc.


    Feature

    • Support LVDS interface monitors from 7 inch to 84 inch,
    • Multi Interaction modes: Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch
    • Multi network interfaces: Ethernet, Wireless WIFI, BT
    • Multi interfaces: USB, serial ports, IO interface, I2C, DC output
    • Strong anti-electromagnetic interference and Electromagnetic compatibility

    Unit 2 Specification of Product

    Product Picture


    Basic specification of HW

    CPURockchip RK3288 Quad core Cortex-A17, Quad core GPU Mali-T764
    Frequency2.2 GHz
    RAMDDR3 2G/4G optional
    EMMCEMMC 8GB/16G/32G optional(standard 8GB,support NAND FLASH)
    Interface of monitorLVDS(single way,6 bit two-way,8 bit two-way). Resolution max 1920x1080,support 7"-84" monitar
    EDP 2.0, Resolution max: support 2K screen
    Mainboard backlightSupport 3.3V/5V/12V(optional)
    Touch Screen

    I2C interface(support resistive touch, capacitive touch)

    Support USB IR multi touch, sonic multi touch, optical multi touch

    NetworkRJ45 interface, ethernet 10/100/1000M
    Wi-Fi 802.11b/g/n/ ac, BT4.0
    Image rotationSupport 0°, 90°, 180°, 270°, manual control or automatic, gravity
    RTCinternal battery for Real time clock
    interfacesSupport MIPI camera,max 5MP
    Support USB camera, max 2MP
    USB HOST x 5,USB OTG x 1
    Serial ports x 3, support external devices(NFC module, printer, card reader etc.)
    IO ports x 3
    TF card slot, support 32GB max
    D amplifier: 3W*2 8Ω, support microphone
    AudioMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
    VideoSupport H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 1080P, HTML5 playback, Flash10.1 playback
    PictureSupport JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
    Power supplyinput: AC100-240V.50-60HZ, output:DC12V 3A

    Basic Software specification

    OSLinux
    LanguageMulti language
    OS managementSupport OTA upgrade,U disk upgrade,SD card upgrade
    Original Android OS, rooted,OEM/ODM support
    Support output to 3 monitors at same time
    Support customized local or remote server management OS
    Support third-party Android remote Advertisement release OS
    Support multi serials devices, USB devices, IO controlled devices
    Support output different videos to two monitors

    Structure of PCBA


    electric

    • power supply(DC IN 12V)
    DefinitionPropertyDescription
    １12V_INPower12V power input
    ２12V_INPower12V power input
    ３GNDgroundground
    ４GNDgroundground
    55V_STBinputcontrol
    6PS-ONinputcontrol

    • Touch Panel connector
    definitionpropertydescription
    １GNDgroundground
    ２GNDgroundground
    ３VCC_TPinput

    3.3V

    TP power input

    ４SDAoutputI2C data
    ５SCLoutputI2C clock
    ６GNDgroundground
    7TP_INTinput

    1-B7

    External break off

    8TP_RSTinput

    0-B6

    external reset

    9GNDground

    ground

    10GNDgroundground

    • MIC1
    definitiondescriptiondescription
    １MIC+inputMIC Positive input
    ２MIC-inputMIC Negative input
    • EARPHONE
    definitiondescriptiondescription
    １HPRoutputRight channel output
    ２COMgroundground
    3HPLoutputleft channel output

    • SPEAKER
    definitiondescriptiondescription
    １LPoutputLeft channel output positive
    ２LNoutputLeft channel output negative
    3RPoutputright channel output positive
    4RNoutputright channel output negative

    • (KEY)
    definitiondescriptiondescription
    １VOL+/RECOVERvolume+/ResetDefault high level
    ２VOL-volume-Default high level
    3KEY1inputDefault high level(0-D5)
    4KEY2inputDefault high level(0-D6)
    5KEY3inputDefault high level(0-D7)
    6PLAY_ONinputDefault high level
    7VCC33_RTCpowerpower
    8GNDgroundground
    9GNDgroundground
    10GNDgroundground

    • USB_HOST1
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２HOST_DMoutputdata
    3HOST_DPinputdata
    4GNDgroundground
    • USB_HOST2
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２HOST_DMoutputdata
    3HOST_DPinputdata
    4GNDgroundground

    • USB_HOST3
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２HOST_DMoutputdata
    3HOST_DPinputdata
    4GNDgroundground
    • USB_HOST4
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２HOST_DMoutputdata
    3HOST_DPinputdata
    4GNDgroundground
    • USB_HOST5
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２HOST_DMoutputdata
    3HOST_DPinputdata
    4GNDgroundground

    • USB_OTG1
    definitiondescriptiondescription
    １VCC_5Voutput5V output
    ２OTG_DMoutputdata
    3OTG_DPinputdata
    4NCNCOTG_ID
    5GNDgroundground
    • UART
    definitiondescriptiondescription
    1VCC_IOoutput3.3V output
    2GNDgroundground
    3UART3_RXinputreceive(5-B7)
    4UART3_TXoutputsend(5-B6)
    5UART1_RXinputreceive(5-B7)
    6UART1_TXoutputsend(5-B6)
    7UART1_CTSinputreceive(5-B7)
    8UART1_RTSoutputsend(5-B6)
    9UART4_RXinputreceive(5-B7)
    10UART4_TXoutputsend(5-B6)
    11UART4_CTSoutput(5-B4)
    12UART4_RTSinputsend(5-B5)
    13GO5_C1controlGPIO
    14GO6_B3controlGPIO
    15G05_C3controlGPIO
    16VCC_SYSoutput5V output
    17I2C5_SCLI2CI2C
    18I2C5_SDAI2CI2C
    19GNDgroundground
    20GNDgroundground

    • IR Receiver
    definitiondescriptiondescription
    １IR_OUTinputIR inout(5-C0)
    ２GNDgroundground
    3VCC_5Voutput5v inout
    • LVDS Panel
    definitiondescriptiondescription
    １POWERoutput3V/5V/12V
    ２POWER
    ３POWER
    ４GNDgroundground
    ５GND
    ６GND
    ７RX0-outputdata
    ８RX0+outputdata
    ９RX1-outputdata
    １０RX1+outputdata
    １１RX2-outputdata
    １２RX2+outputdata
    １３GNDgroundground
    １４GND
    １５TCLK3-outputclock
    １６TCLK3+outputclock
    １７RX03-outputdata
    １８RX03+outputdata
    １９RXE0-outputdata
    ２０RXE0+outputdata
    ２１RXE1-outputdata
    ２２RXE1+outputdata
    ２３RXE2-outputdata
    ２４RXE2+outputdata
    ２５GNDgroundground
    ２６GND
    ２７TCLK2-outputclock
    ２８TCLK2+outputclock
    ２９RXE3-outputdata
    ３０RXE3+outputdata

    • LCD JP JACK
    definitiondescriptiondescription
    １12Voutput12V
    ２LCD-VDD-INinputLCD
    13.3Voutput3.3V
    2LCD-VDD-INinputLCD
    35Voutput5V

    • LCD BL JACK
    definitiondescriptiondescription
    １12Voutput12V
    ２12Voutput12V
    3LCD-ENoutputbacklight control(0-B1)
    4LCD-ADJoutputbacklight adjust(3-D6)
    5GNDgroundground
    6GNDgroundground

    • eDP Panel
    definitiondescriptiondescription
    １POWERoutput3V/5V/12V
    ２POWER
    ３GNDgroundground
    ４GND
    5EDP_TX0Noutputdata
    6EDP_TX0Poutputdata
    7EDP_TX1Noutputdata
    8EDP_TX1Poutputdata
    ９EDP_TX2Noutputdata
    10EDP_TX2Poutputdata
    11EDP_TX3Noutputdata
    12EDP_TX3Poutputdata
    13GNDgroundground
    14GNDgroundground
    15EDP_AUXNoutputdata
    16EDP_AUXPoutputdata
    17GNDgroundground
    18GNDgroundground
    19EDP_HPDinputdata
    20GNDgroundground


    Appendix

    • Product pictures

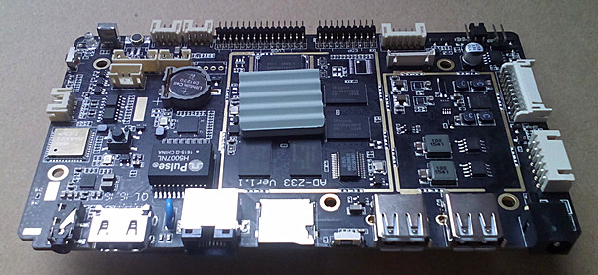

    • front

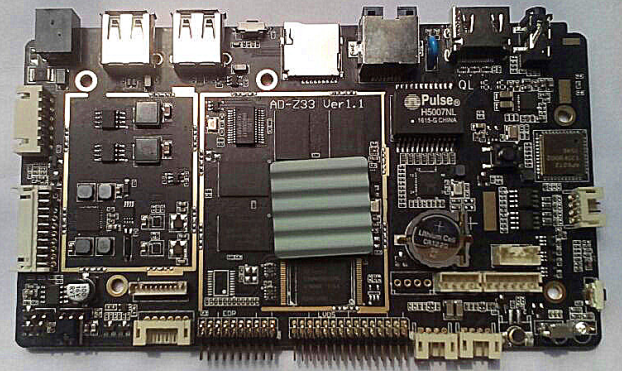

    • back

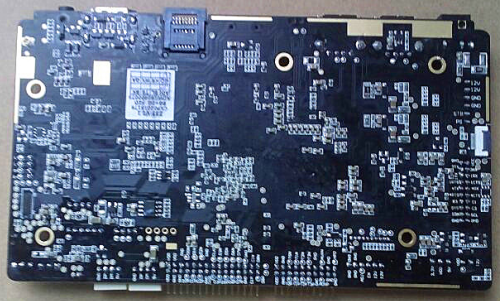

    • side


    SUNCHIP mainly manufactures:

    1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

    RK3328, RKPX30, RK3188, RK3128 etc.

    2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

    3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

    4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

    5, SKD Kit: Android board + LCD panel with touch or not:

    7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

    6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

    7, Embedded touch desk: such as 32inch.

    8, Face recognition temperature detection terminal machine: such as 8inch.

    [You can also tell us your detailed requirements, so that we advise you a matched solution]
