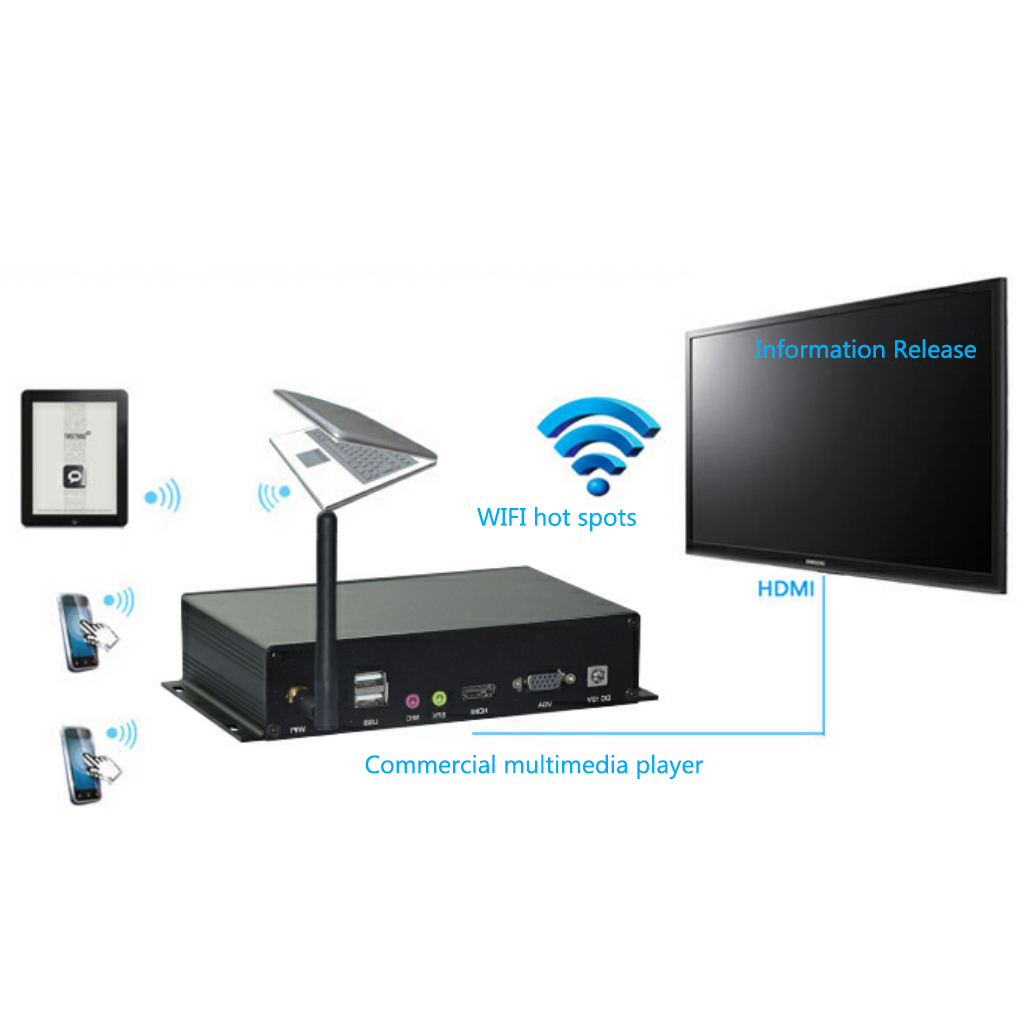

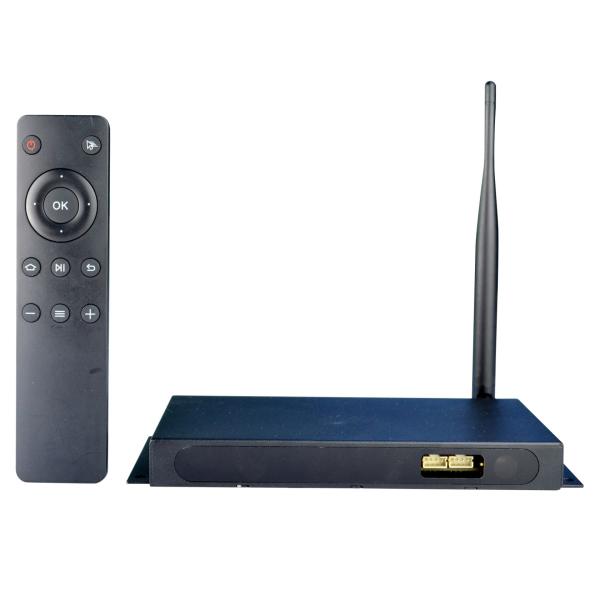

HD Digital Signage Android Media Player Box For Advertising Display
| Model No.: | AD-Z33L box | Model Name: | media player box | ||
| Size: | 170*96*20MM | ||||
| Hardware Spec | |||||
| Operation System | Google Android 4.4 | ||||
| Language | Chinese,English...Multi-Language support | ||||
| CPU | RK3188 Quad-core ARM Cortex-A9 MPCore processor | ||||
| GPU | ARM Mali-400 GPU | ||||
| SDRAM | DDR3 1GB / 2GB (option) | ||||
| Flash | 8GB / 16GB / 32GB(EMMC)(option) | ||||
| Network | RJ45 10/100M Ethernet | ||||
| WIFI Module | AP6212 | ||||
| Power Supply | DC 12V/3A 5.5mm DC-in | ||||
| Camera | 200W /500W | ||||
| Interface | |||||
| HD Output | HD 2.0 to support maximum 4Kx2K@30fps max resolution output | ||||
| USB Port | 1*USB Host 1*USB OTG | ||||
| AUDIO Out | 1*3.5mm Headphone Jack | ||||
| Network | 1*RJ45 10/100/1000M Ethernet | ||||
| Power Supply | 1*DC Jack 12V/3A 5.5mm DC-in | ||||
| TF card Interface | TF Card, up to 32GB | ||||
| External antenna | 2.4G/ 5G 3dbi optional | ||||
| Media Parameter | |||||
| Audio Container | Supports MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | ||||
| HD Out | HD Data Output | ||||
| Video Decoder | Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *. *.mp4, and *.jpg file formats | ||||
| Video Encoder | H.264/MVC/VP8 encoder by 1080p@30fps | ||||
| Resolution | Maximum resolution is 4Kx2K | ||||
| H.265 Data Rate | H.265 decoder by 2160p@60fps | ||||
| Software Extension | APK install | ||||
| Infrared remote control | IR remote | ||||
| IM Software | Support Skype/QQ/MSN/GTALK (Depends on APK) | ||||
| Offic Software | WORD/EXCEL/PDF(Depends on APK install) | ||||
| Others Parameters | |||||
| Operationg Temperature | 0~70℃ | ||||
| Storage Temperature | -10~70℃ | ||||
| Humidity environment | 5%-90%(No condensation) | ||||
| Package | |||||
| Dimension | 258*147*67MM | ||||
| Net weight | 0.534kg | ||||
| Gift Box Size | 195*153*70mm | ||||
| Packing accessories | |||||
| 1, AC cable 2, 12V/3A adapter 3, Remote control 4, External antenna | |||||
|
|
