Shenzhen Sunchip Technology Co., Ltd. We are specializing in LCD AD Players, LCD digital signage and customized PCBA products used in commercial and industrial environments.
7 Years
| Ask Lasest Price | |
| Brand Name : | ADW |
| Model Number : | AD-4340 |
| Price : | USD300~USD1200/pc |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 pcs per month |
| Delivery Time : | 30 days |

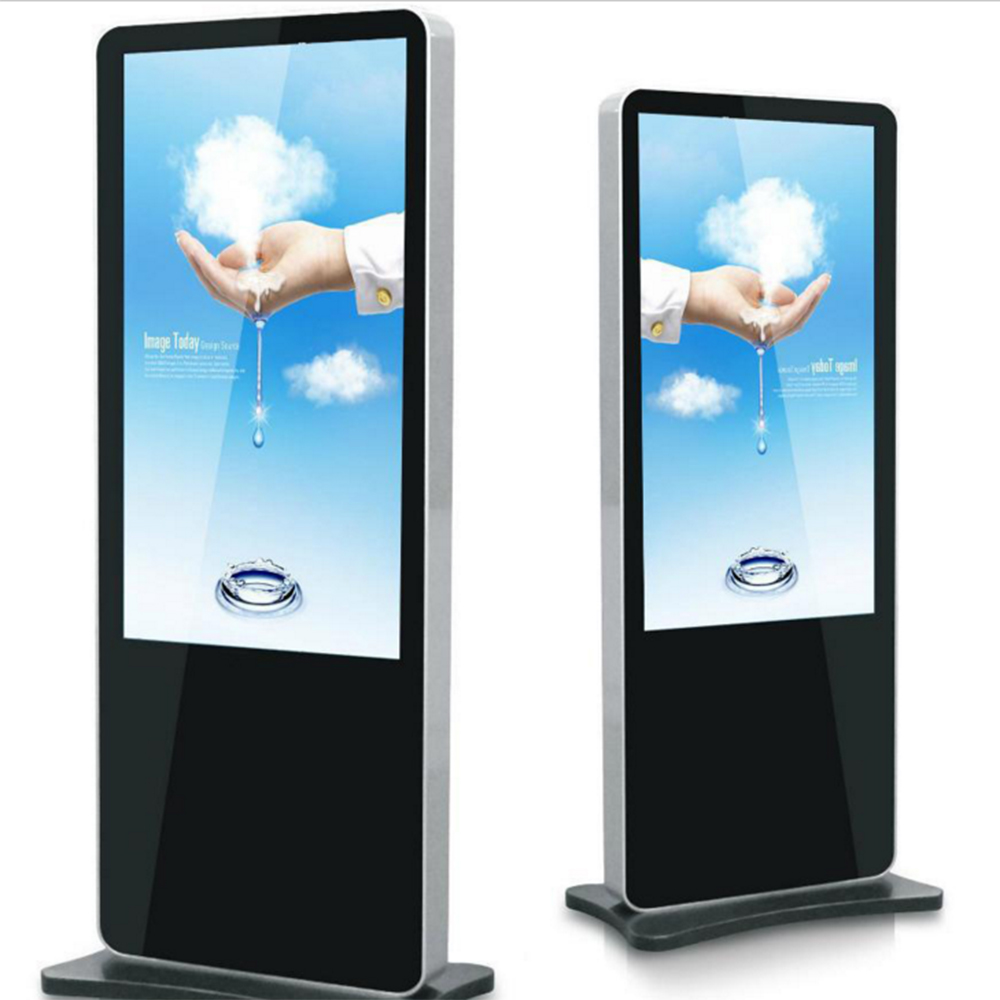

32 42 46 55 65 Inch Floor Stand 3G WiFi Touch Screen LCD Advertising Media Player
| Screen specs | |
| Panel size | 32 42 46 55 65 Inch |
| Display area | 1215mm(H)×686mm(V) |
| Pixel Pitch | 0.0798 mm x 0.2394 mm |
| Max Resolution | 1080*1920RGB |
| Contrast | 16:9 |
| Brightness | 350cd/㎡ |
| Contrast Ratio | 5000:1(Typ.) |
| Luminance uniformity | >70% |
| Response Time: | 6.5ms |
| Color: | 8 bit/16.7 Billion |
| Backlight | LED |
| Life(hrs) | >50000 |
| CPU | Rockchip RK3188 Quad core Cortex-A9 GPU Mail-400 @ 533MHz |
| Frequency | 1.6 GHz |
| RAM | DDR3 2G Optional |
| Rom | NAND FLASH 8GB |
| DIF | LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display. |
| Onboard backlight | 12V |
| LCD voltage | 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch. |
| Network | Have RJ45 interface,support Ethernet. |
| Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support BT3.0/BT4.0 | |
| Image rotation | Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function. |
| Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support DVP interface camera, the maximum support 500W pixels |
| Support USB camera | |
| 3 USB HOST (1 motherboard, 2 small board), 1 USB OTG | |
| 1 group serial port. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
| 1 group of I2C ports | |
| SD card, maximum support 32GB | |
| D class large built-in speaker, 8 oh / 3W | |
| Support for microphones | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video | Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash 10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input AC100-240V.50-60HZ, output:DC12V 3A |
Sunchip is providing services & solutions in ARM board and digital signage. We are specializing in OEM&ODM service.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
