| Brand Name : | ADW |
| Model Number : | AD-3240 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, PayPal |
| Supply Ability : | 10000 pcs per month |
| Delivery Time : | 30 days |

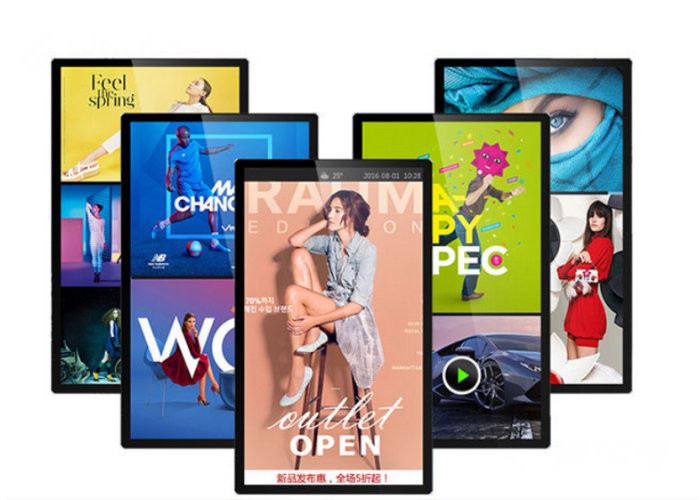

Touch Screen Interactive Digital Signage 32 Inch RK3399 RK3588 RK3288 RK3568 with CMS
Hardware: Rockchip RK3588, Octa-Core CPU, AD-C58 motherboard,
| CPU | Rockchip RK3588 octa-core 64-bit size core architecture,4*Cortex-A76 + 4*Cortex-A55 | |
| Main frequency | The main frequency of the large core is 2.1GHz, and the main frequency of the small core is 1.7GHz | |
| GPU | ARM Mali-G610 MC4 | |
| OpenGL ES 1.1/2.0/3.1/3.2 | ||
| Vulkan 1.1,1.2 | ||
| OpenCL 1.1,1.2,2.0 | ||
| Embedded high-performance 2D image acceleration module | ||
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32, enabling various AI scenarios | |
| Memory | 4GB/8GB/16GB(Up to 32GB)64bit LPDDR4/LPDDR4x | |
| Built-in storage capacity | EMMC 32G/64G/128G/256G(optional) | |
| Display interface | HD OUT( up to 8K@60FPS) | |
| HDMI IN(Up to 8K@60FPS) | ||
| LVDS display interface | ||
| EDP display interface | ||
| MIPI display interface | ||
| Screen voltage | Support 3.3V/5V/12V optional | |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. | |
| Network | With RJ45 interface, support 10/100/1000M Ethernet. | |
| Equipped with AP6275S industrial WiFi-6 module SIDO/PCIE dual-channel Bluetooth WiFi module 2T2R 802.11 ax/ac/a/b/g/n Wi-Fi + BT 5.0 Module | ||
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/automatic rotation, support gravity sensing function | |
| Real Time Clock | Built-in real-time clock powered by battery | |
Interface device | Support MIPI interface camera, support 500W pixels | |
| 3 USB HOST 2.0 (4PIN2.0 spacing connectors) | All support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals | |
| 2 USB HOST3.0 (standard interface) | ||
| 1 full-featured Type-C interface (OTG) | ||
| 3 sets of serial ports, support external serial device modules (NFC module, printer, card reader, etc.) | ||
| TF card, maximum support 128GB | ||
| Class D power amplifier: default 3W*2 8 ohms, support microphone | ||
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP Format | |
| Video | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K60FPS Support H.264/H.265 video encoding, up to 8K30FPS | |
| Picture | Support JPG, BMP, PNG and other image formats to browse and support rotation/slide show/image enlargement functions | |
| Power Adapter | Input: AC100-240V.50-60HZ, Output: DC12V 3A (positive inside and negative outside) | |
Hardware: Rockchip RK3288, Quad-Core, AD-B02P motherboard,
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
Display interface | LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
The internet | With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Hardware: Rockchip RK3399, Hexa-Core, AD-B03 motherboard,
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Hardware: Rockchip RK3568, Quad-core, AD-C33P motherboard,
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
Display interface | LVDS interface (LVDS and MIPI are Only one of them can be selected) |
| MIPI interface (LVDS and MIPI are Only one of them can be selected) | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
The internet | With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Sunchip is providing services & solutions in ARM board and digital signage. We are specializing in OEM&ODM service.
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
